Product Details:
|
| Product Name: | Aluminum Claded Coil | Thickness: | Per Request |
|---|---|---|---|
| Length: | Per Request | Applications: | Condenser, Evaporator, Oil Cooler, Air Cooler, Etc. |
| Payment Term: | 30% Prepayment, Balance Before Shipment | Leading Time: | 5~8 Wks |
| MOQ: | 5 Metric Tons | Package: | Exported Standard Packing |
| High Light: | Car Condenser Evaporator Aluminum Foil,Hot Cold Rolling Aluminum Cladding Foil,TS16949 Aluminum Claded Coil |
||

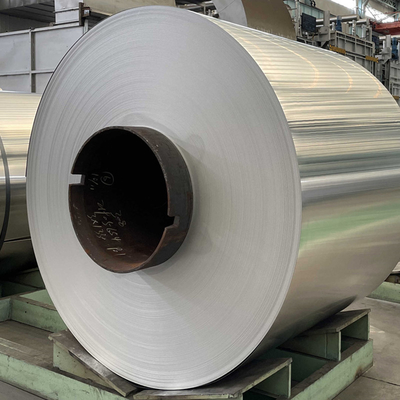

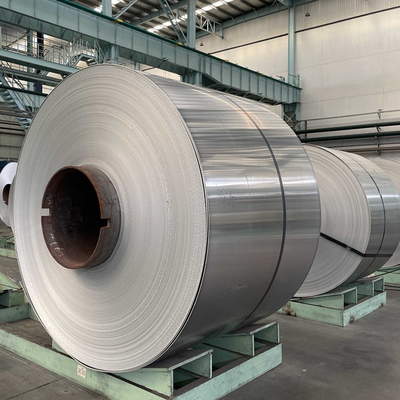

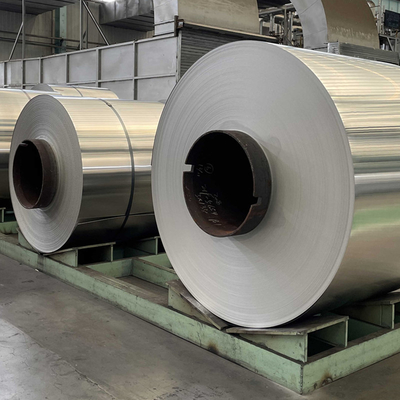

Hot Cold Rolling Aluminum Cladding Coil Foil Sheet for Car Condenser Evaporator
Customized service is supported. You can send us chemical composition and mechanical property, we can produce according to your request.
Specification of aluminum strip:
1) Core Alloy: 1060, 3003, etc.
2) Cladding alloy: 4343, 4045, 7072, 5052 etc.
3) Cladding rate: 4%-18%
4) Thickness: 0.2-3.0mm
5) Width: 12 - 1250mm (max)
6) Temper: HO, H14 etc
7) I. D.: 150mm, 200mm, 300mm, 400mm, 500mm
8) Normal O. D.: 900-1450mmm
9) Other sizes is available according to customers request
Application:
Heat exchanger of wind energy, electronic industry, nuclear energy, petroleum tube, shipping industry, etc
Features:
1. Anti-corrosion, anti-mildew and no peculiar smell;
2. The accumulated condensed water on the surface of the heat sink is evenly distributed on the surface, and will not affect the heat exchange conditions due to the formation of water droplets between the heat accumulation blocks, thereby increasing the heat exchange rate by 5%;
3. Since the water has no beads, the noise caused by vibration is correspondingly reduced;
4. Prevent the air-conditioning powder from entering the room and cause adverse effects on the human body, in line with environmental protection requirements
Package:
Standard Export wooden Case/Pallet
| Salt spray test: |
| 1)epoxy coated aluminum foil: 500 Hours,class 8 in PH<7; |
| 2)hydrophilic aluminum foil: 500 Hours,class 9.5 in PH=7. |
