Product Details:
|
| Product Name: | Prismatic Battery Brazed Cold Plate | Thickness: | 5~8 Mm Or Customized |
|---|---|---|---|
| Style Of Cooling Plate: | Stamped Type, Roll-bonded Evaporator, Extrusion Type, FSW Cold Plate, | Surface Treatment: | Insulation Coating |
| Applications: | HEV/EV/ESS Battery Thermal Management | Design Service: | Yes |
| Payment Term: | 30% Prepaid, Balance Before Shipment | Package: | Exported Standard Package |
| HS Code: | 7606XX | Key Words: | Extrusion Cooling Tube, Water Cooled Plate, Liquid Cooling Tube For EV |
| Highlight: | Electric Vehicle Brazed Cold Plate,Battery Cooling Brazed Cold Plate,Hybrid Brazed Cold Plate |
||

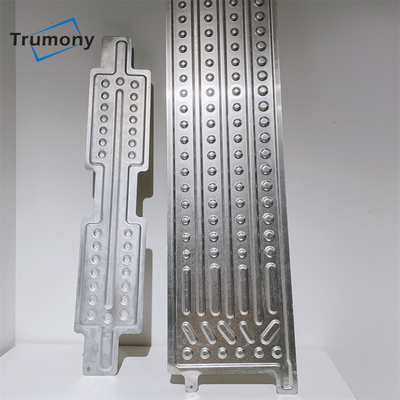

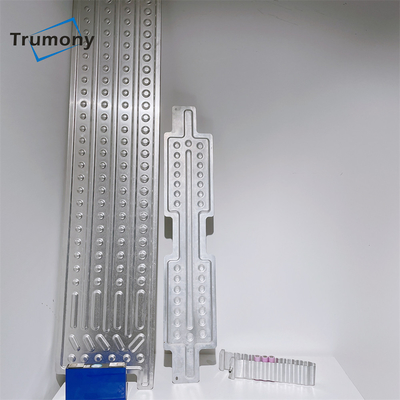

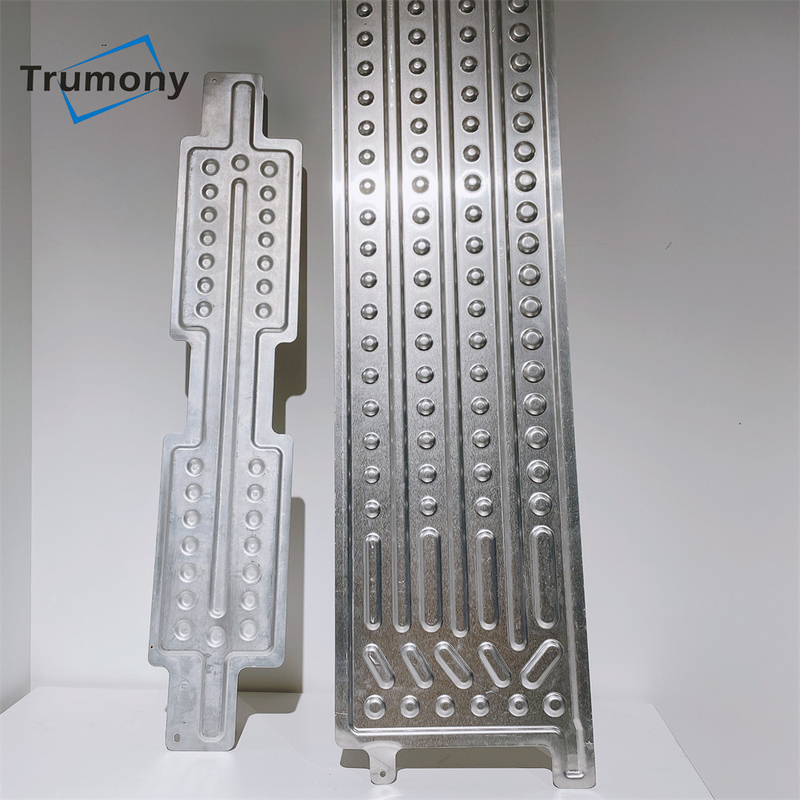

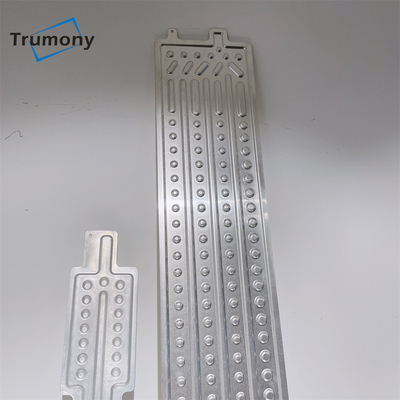

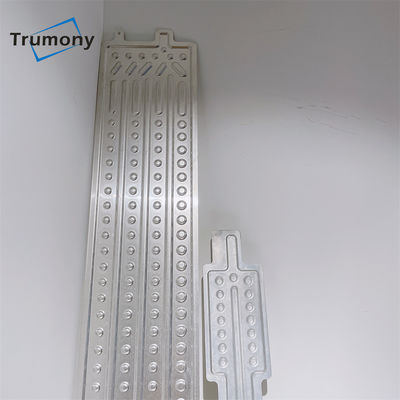

Prismatic Cell Battery Cooling Brazed Cold Plate
The brazed cold plate is a mature design for prismatic cells or battery pack, through excellent stamping processing technology and high-quality aluminum raw materials, the performance of stamping type cooling plate to a higher standard. Our cooling plate is custimized, which is meeting to our customers' requirement to fit their applications.
| Product name | Battery Cooling Brazed Cold Plate |
| Plate size | According to your boundary size |
| Cells | Prismatic cells, 18650, 21700, 4680 |
| Structure | Passenger channel plate + bottom cooling plate + Inlet & outlet |
| Thickness | 5~8 mm, According to your design |
| Surface treatment | Insulation coated / Powder spary |
| Spare parts | Quick connector, thermal interface material (silicon pad), pump, etc. |
| Service | Cooling tube design service, heat simulation service, flow path suggestion, finalize production feasibility |
Full cooling solutions for you:
1) Stamping type cooling plate for prismatic cells / battery pack.
2) Extrusion snake tube for cylindrical cells, such as 21700, 18650, 3270, 4680 big cell.
3) Roll bonded cooling plate
4) FSW cooled plate
5) Aluminum cold plate with copper tube
Our Advantages:
1) Flexible solutions for battery cooling. (According to your module provide customized cooling plate)
2) Design service, we have R&D department, can do design finalization, flow and heat simulation.
3) CNC centre to make customized inlet/outlet connector.
4) Thermal Interface Material, such as thermal silicone pad, Insulation coating etc.
5) Quick sample make, fast delivery
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
