Product Details:
|
| Name: | Thermal Gap Filler Pads | Thermal Conductivity: | 1.5-12 W/m*K |
|---|---|---|---|
| Application: | EV Battery Pack | Hardness: | 0.4-3mm |
| Density: | 1.8-3.5g/cc | Voltage Resistance: | 6-10 KV/mm |
| Volume Resistivity: | 10^12 Ω*cm | Flame Rating: | V0 UL-94 |
| Color: | Gray/Customize | ||
| High Light: | EV Battery Thermal Gap Pad Material,Lithium Battery Thermal Gap Filler Pads,2W/MK Thermal Gap Filler Pads |
||

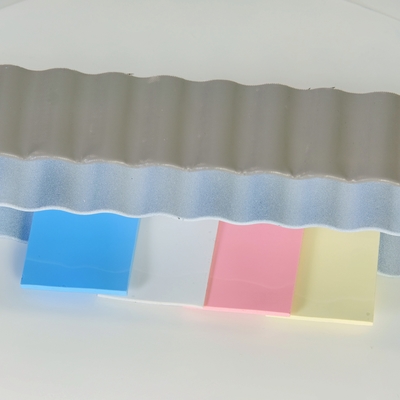

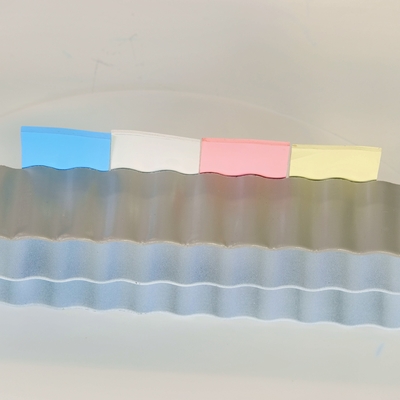

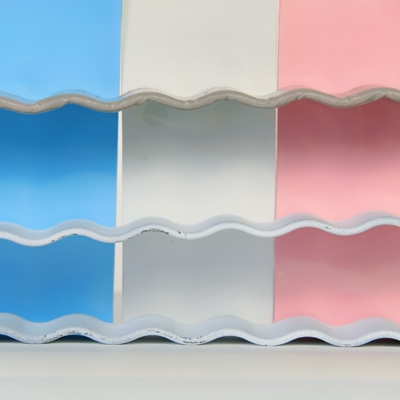

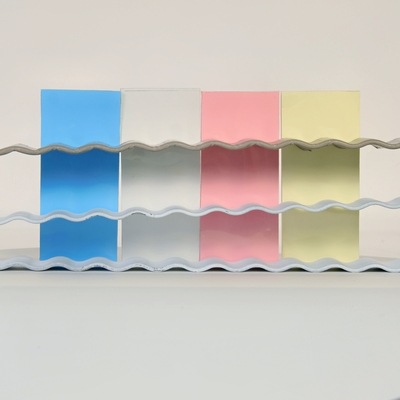

2 W / M * K Thermal Gap Filler Pads For Lithium Battery Pack Cooling Plate
| Thermal Gap Filler Pads Series | ||||||
| Item No. |
Thermal Conductivity (W/m*K)
|
Hardness (Shore 00) |
Density (g/cc) |
Voltage Resistance (KV/MM) |
Volume Resistivity (Ω*cm) |
Flame Rating (UL-94) |
| 301-0150 | 1.5 | 5~80 | 1.8 | 10 | 10^12 | V0 |
| 301-0200 | 2 | 5~80 | 2 | 10 | 10^12 | V0 |
| 301-0300 | 3 | 15~80 | 3.0 | 8 | 10^12 | V0 |
| 301-0400 | 4 | 15~80 | 3.3 | 8 | 10^12 | V0 |
| 301-0600 | 6 | 20~80 | 3.5 | 8 | 10^12 | V0 |
| 301-0800 | 8 | 30~80 | 3.6 | 8 | 10^12 | V0 |
| 301-1000 | 10 | 30~80 | 3.3 | 6 | 10^12 | V0 |
| 301-1200 | 12 | 30~80 | 3.2 | 6 | 10^12 | V0 |
1, The main purpose of the selection of Thermal Gap Filler Pads to reduce the contact thermal resistance between the surface of the heat source and the contact surface of the heat dissipation device, Thermal Gap Filler Pads can fill the gap of the contact surface well;
2, The air is a bad conductor of heat will seriously hinder the transfer of heat between the contact surface, and the heat transfer Thermal Gap Filler Pads between the heat source and the radiator can squeeze the air out of the contact surface;
3, With the supplement of heat-conducting Thermal Gap Filler Pads , can make the contact surface between the heat source and the radiator better and full contact, really face-to-face contact, so that the reaction on the temperature can be as small as possible.
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 10-30 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the thermal gap Filler Pads and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of Thermal Gap Filler Pads ?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
