Product Details:
|
Name: | Thermal Conductive Silicone Grease | Thermal Conductivity: | 1-6W/m*K |
---|---|---|---|
Application: | CPU | Hardness: | 5~80Shore 00 |
Density: | 2.5-3.5g/cc | Voltage Resistance: | 6-10 KV/mm |
Viscosity: | 10^12 Ω*cm | Flame Rating: | V0 UL-94 |
Color: | Gray/Customize | Feature: | Insulation |
High Light: | Insulation Thermal Grease,Thermal Conductive Silicone Grease,Cooling Plate Chipset Silicone Grease |

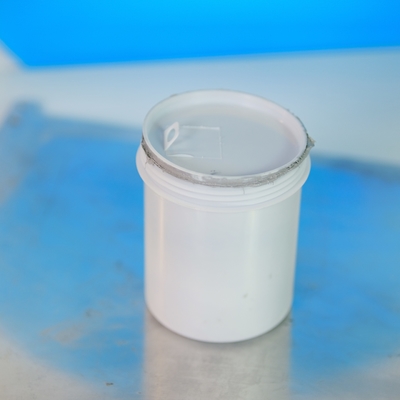

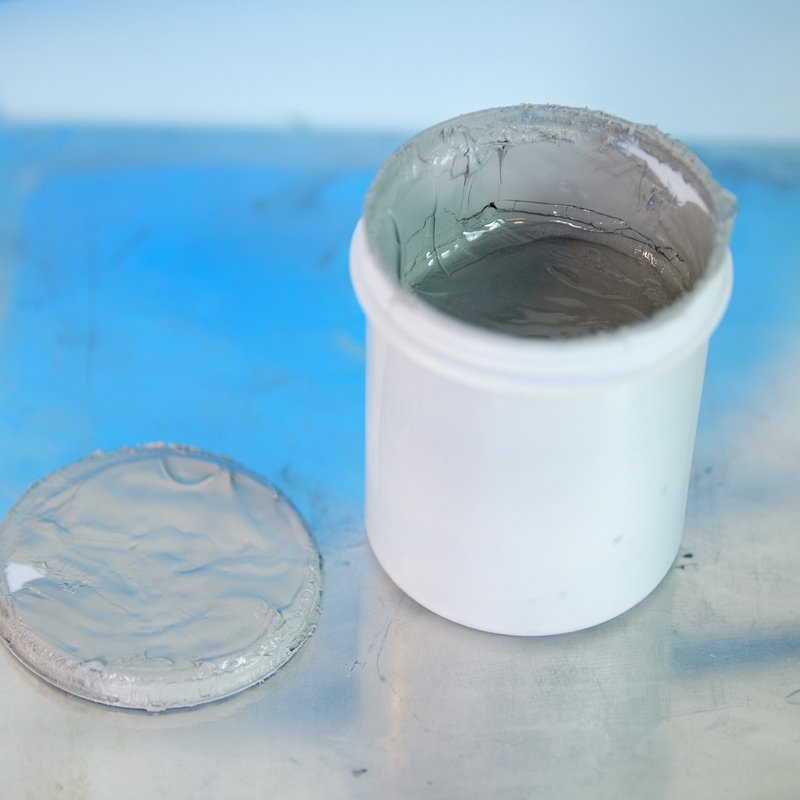

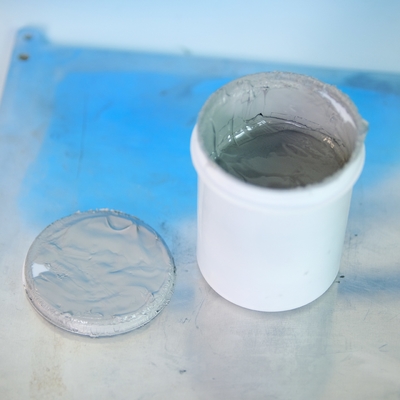

Thermal Conductive Silicone Grease For Cooling Plate chipset
Thermal conductive silicone grease is a kind of high thermal conductivity insulating silicone material, Thermal conductive silicone grease refers to organic silicone as the main raw material, is currently the most widely used kind of thermal conductivity medium, the material is paste liquid, it is based on silicone oil as the raw material, and add thickening agent and other fillers, after heating and depressurisation, grinding and other processes to form a kind of ester, with a certain degree of viscosity, there is no obvious sense of particles. Thermal conductive silicone grease can effectively fill all kinds of seams. The colour is different depending on the added heat-conducting material. Its main raw material is organic silicone
Thermal conductive silicone grease | |||||
Performance test | test method | 30108-0120 | 30108-0270 | 30108-0400 | 30108-0350 |
Color | visual | white | white | white | white |
Conductivity(W/m*K) | ISO 22007-2 | 1.2 | 2.7 | 4.0 | 3.5 |
Thermal resistanse(oC-cm2/W) |
ASTM D5470 80oC@50psi |
0.2 | 0.18 | 0.12 | 0.05 |
Density(g/cc) | ASTM D792 | 2.5 | 3.0 | 3.2 | 3.3 |
viscosity(mPa*s) | ASTM D2196 | 50,000 | 20,000 | 70,000 | 100,000 |
1, has good heat transfer, at the same time has a non-dry solid, not solidified, not melted, odourless and non-toxic;.
2,Excellent thermal conductivity, with low oil separation, high temperature does not separate oil, high temperature does not flow.
3, excellent insulating properties, non-toxic, odourless, non-curing, non-corrosive to the substrate, stable chemical and physical properties.
4, high and low temperature resistance, water, ozone, climate aging, can be used for a long time in high and low temperature environment.
5, good thixotropy, moderate consistency, easy to use, coating or potting process is simple.
6, has excellent electrical insulation, but also has excellent thermal conductivity, at the same time has a low degree of oil (tends to zero), high and low temperature resistance, water resistance, ozone resistance, weather aging.
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 10-30 days.
C) Whether you could make our brand on thermal conductive silicone grease ?
Yes. We can print your Logo on both the Thermal Grease and the packages if you can meet our MOQ.
D) Whether you could make thermal conductive silicone grease by our color?
Yes, The color of thermal grease can be customized if you can meet our MOQ.
E) How to guarantee the quality of thermal conductive silicone grease ?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
