Product Details:
|
| Name: | Silicone Grease | Thermal Conductivity: | 1-6W/m*K |
|---|---|---|---|
| Application: | CPU | Hardness: | 5~80Shore 00 |
| Density: | 2.5-3.5g/cc | Voltage Resistance: | 6-10 KV/mm |
| Viscosity: | 10^12 Ω*cm | Flame Rating: | V0 UL-94 |
| Color: | Gray/Customize | Feature: | Insulation |
| High Light: | Insulation CPU Thermal Interface Material,Heat Sink CPU Thermal Grease,Electron Component CPU Thermal Grease |
||
Heat Sink CPU Thermal Grease for Electron Component
CPU Thermal grease is a material used to fill the gap between the CPU and the heatsink, which is also called thermal interface material. Its role is to conduct the heat emitted by the CPU to the heatsink, so that the CPU temperature is maintained at a stable working level, preventing the CPU from being destroyed due to poor heat dissipation and extending its service life.
In the application of heat dissipation and thermal conductivity, even if the surface is very clean two planes in contact with each other there will be gaps, these gaps in the air is a bad conductor of heat, will hinder the conduction of heat to the heatsink. CPU Thermal grease is a kind of can fill these gaps, so that the heat conduction more smooth and rapid material.
| CPU thermal grease | |||||
| Performance test | test method | 30108-0120 | 30108-0270 | 30108-0400 | 30108-0350 |
| Color | visual | white | white | white | white |
| Conductivity(W/m*K) | ISO 22007-2 | 1.2 | 2.7 | 4.0 | 3.5 |
| Thermal resistanse(oC-cm2/W) |
ASTM D5470 80oC@50psi |
0.2 | 0.18 | 0.12 | 0.05 |
| Density(g/cc) | ASTM D792 | 2.5 | 3.0 | 3.2 | 3.3 |
| viscosity(mPa*s) | ASTM D2196 | 50,000 | 20,000 | 70,000 | 100,000 |

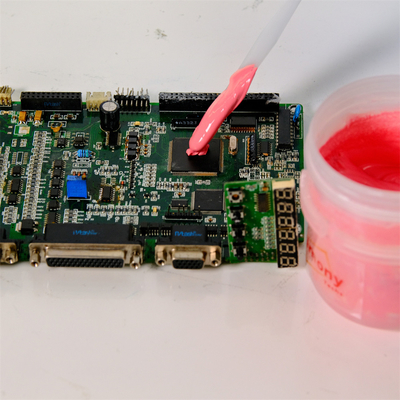

CPU thermal grease is mainly used to fill the tiny gap between the processor and the heat sink, so as to conduct heat conduction between the two, in order to improve the heat dissipation effect and ensure the stability and performance of the computer.
CUP thermal grease is generally a non-electrical conductor, which can effectively isolate the metal contact between the processor and heat sink, avoiding the generation of electric current and electro-oxidative reaction, and preventing the corrosion of metal parts.
1, has good heat transfer, at the same time has a non-dry solid, not solidified, not melted, odourless and non-toxic;.
2,Excellent thermal conductivity, with low oil separation, high temperature does not separate oil, high temperature does not flow.
3, excellent insulating properties, non-toxic, odourless, non-curing, non-corrosive to the substrate, stable chemical and physical properties.
4, high and low temperature resistance, water, ozone, climate aging, can be used for a long time in high and low temperature environment.
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 10-30 days.
C) Whether you could make our brand on CPU thermal grease ?
Yes. We can print your Logo on both the silicone grease and the packages if you can meet our MOQ.
D) Whether you could make CPU thermal grease by our color?
Yes, The color of CPU Thermal grease can be customized if you can meet our MOQ.
E) How to guarantee the quality of CPU thermal grease ?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
