Product Details:
|
| Name: | Silicone Grease | Thermal Conductivity: | 1-6W/m*K |
|---|---|---|---|
| Application: | CPU | Hardness: | 5~80Shore 00 |
| Density: | 2.5-3.5g/cc | Voltage Resistance: | 6-10 KV/mm |
| Viscosity: | 10^12 Ω*cm | Flame Rating: | V0 UL-94 |
| Color: | Gray/Customize | Feature: | Insulation |
| High Light: | CPU Thermal Interface Material,Heat Sink Thermal Paste,Insulation Uncure Thermal Paste |
||

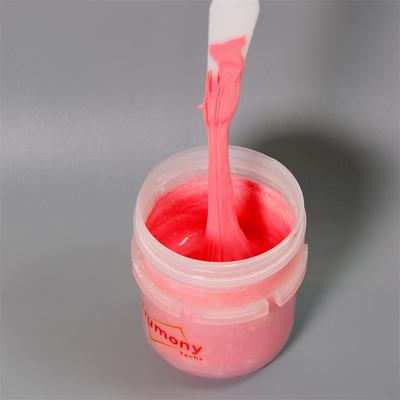

High thermal conductivity Insulation Uncure Thermal paste for Heat Sink
Thermal paste consists of two parts: silicone oil and filler, silicone oil is a synthetic silicone-containing polymer compounds, more difficult to volatilise, the role of silicone oil is to make the silicone grease in a semi-fluid state, easy to use, the most common is polydimethylsiloxane, a lot of shampoo has this ingredient. And the filler is the main part of the silicone grease thermal conductivity, usually metal oxides, metal powder, graphite powder, diamond powder and so on. A more stable dispersion system of fillers and silicone oil is thermal paste.
| thermal paste | |||||
| Performance test | test method | 30108-0120 | 30108-0270 | 30108-0400 | 30108-0350 |
| Color | visual | white | white | white | white |
| Conductivity(W/m*K) | ISO 22007-2 | 1.2 | 2.7 | 4.0 | 3.5 |
| Thermal resistanse(oC-cm2/W) |
ASTM D5470 80oC@50psi |
0.2 | 0.18 | 0.12 | 0.05 |
| Density(g/cc) | ASTM D792 | 2.5 | 3.0 | 3.2 | 3.3 |
| viscosity(mPa*s) | ASTM D2196 | 50,000 | 20,000 | 70,000 | 100,000 |

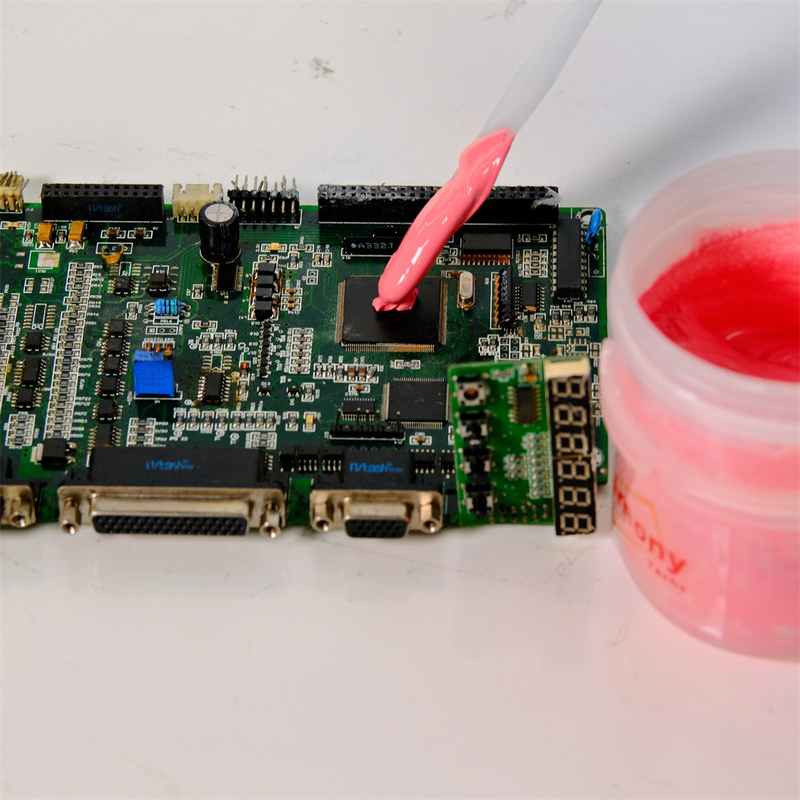

The main role of the thermal paste is to fill the gap between the processor and the heat sink, so the thinner you apply the better. Many friends deliberately coated a thick layer on the processor, in fact, the thicker the thermal conductivity will be the worse, but also prone to air bubbles and other impact on performance. The best coating tool is a hard plastic sheet, such as the transparent packaging of the product, or a transparent sheet for slide projectors and other materials, with scissors to cut out a long strip, the width is slightly wider than the processor!
1. Excellent thermal conductivity thermal conductivity covers 4W/m.k-8W/m.k, to meet the needs of different customers on the thermal conductivity of the demand
2. Excellent insulation properties, breakdown voltage up to 2KV/mm.
3. High and low temperature resistance, stable chemical and physical properties, can be used for a long time at temperatures ranging from -40℃ to 200℃.
4. Moderate consistency, easy to use, coating or screen printing, simple process.
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 10-30 days.
C) Whether you could make our brand on thermal paste ?
Yes. We can print your Logo on both the thermal paste and the packages if you can meet our MOQ.
D) Whether you could make thermal paste by our color?
Yes, The color of CPU Tthermal paste can be customized if you can meet our MOQ.
E) How to guarantee the quality of thermal paste ?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
