Product Details:
|
| Name: | Thermal Gel | Color: | Bule/customize |
|---|---|---|---|
| Materil: | Silicone | Iteam: | 302-0600 |
| Density: | 3.4g/cc | Conductivity: | 6.4w/m*k |
| Capacity: | 180cc | Temperature Range: | -40-150℃ |
| High Light: | High Conductivity Silicone Resin Thermal Gel,CPU GPU Silicone Resin Thermal Gel |
||

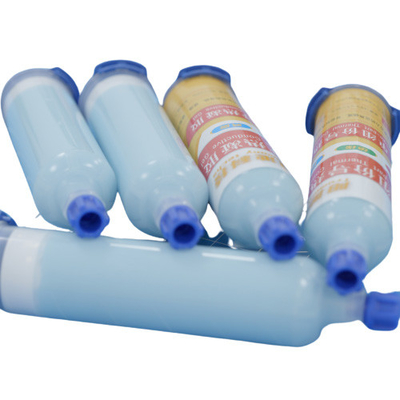

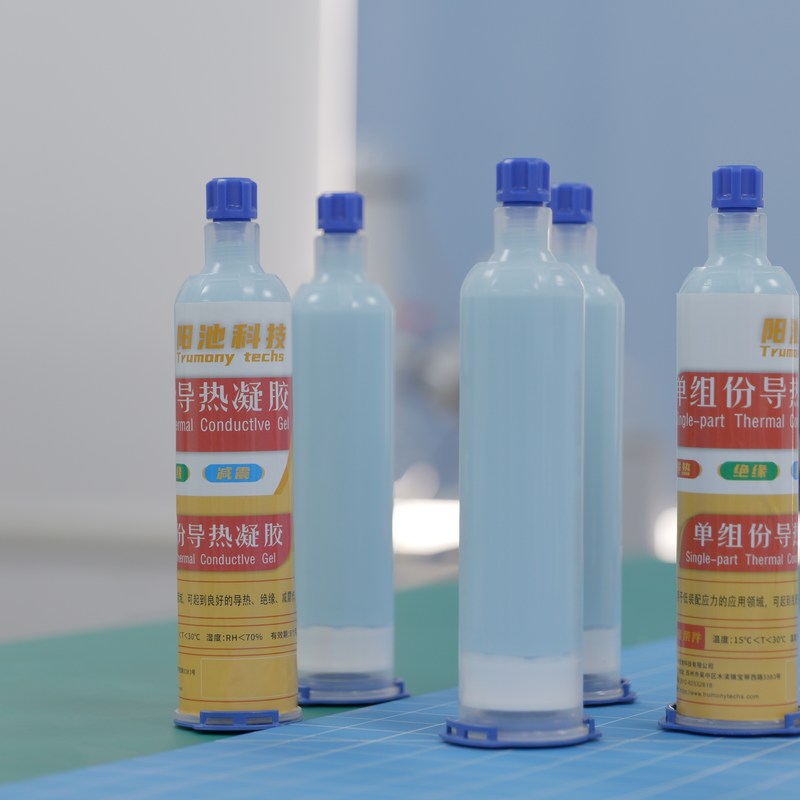

High Conductivity 6W/MK Thermal Gel for CPU
With the continuous upgrading of electronic equipment, the performance requirements for various aspects of equipment devices are getting higher and higher. However, high-performance devices will emit more heat when working, so how to control the temperature to ensure that the high-speed operation of electronic devices is crucial.
When the traditional thermal gap material can not fit the installation, a heat-generating devices to provide highly reliable thermal management materials are widely used in electronic devices, it is thermal gel.
|
Thermal Gel Date Sheet |
||
|
PROPERTY |
TYPICAL VALUE |
METHOD |
|
Color |
Blue/customize |
Visual |
|
Conductivity(W/m*K) |
6.4 |
Hot Disk |
|
Density(g/cc) |
3.4 |
Helium Pycnometer |
|
Capacity |
180cc |
/ |
|
Temperature Range |
-40-150℃ |
Trumonyteches method |
1,Excellent thermal conductivity. Thermal gel is softer and has better surface affinity than thermally conductive spacer.
2, has superior electrical properties, aging resistance, resistance to hot and cold alternating properties (can be in -40 ~ 200 ℃ long-term work), electrical insulation properties, shockproof, vibration absorption and stability, increasing the safety factor of electronic products in the use of the process;
3,Satisfy a variety of applications.thermal gel is not sensitive to the thickness, and has good adaptability in the process of equipment assembly, compatible with the related devices or structural components in the dimensional tolerances brought about by the impact. It can provide a good contact between the heat generating surface and the heat dissipating surface under low pressure or no pressure.
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 15-30 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the thermal gel and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of the thermal gel can be customized if you can meet our MOQ.
E) How to guarantee the quality of thermal gel?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
