Product Details:
|
| Name: | Thermal Gel | Color: | Bule/customize |
|---|---|---|---|
| Materil: | Silicone | Iteam: | 302-0600 |
| Density: | 3.4g/cc | Conductivity: | 6.4w/m*k |
| Capacity: | 180cc | Temperature Range: | -40-150℃ |
| High Light: | 180cc Thermal Interface Material,LED Thermal Interface Material |
||

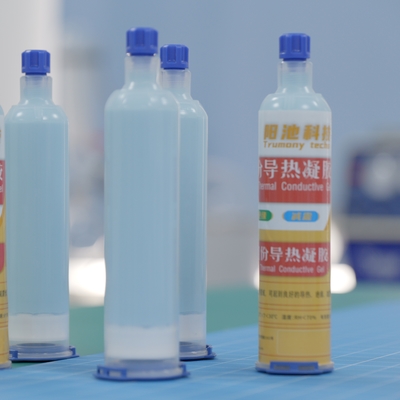

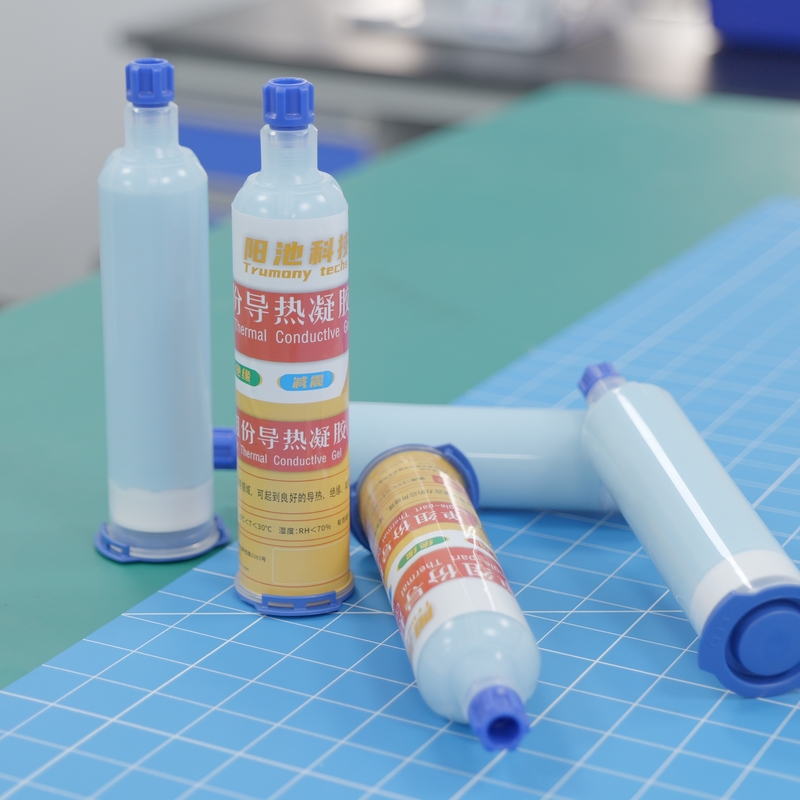

High Thermally Conductive Single Part Fillers Dispensable Material for LED
Thermally Conductive Single Part Fillers is a silicone resin as the base material, adding thermally conductive fillers and bonding materials configured in a certain ratio, and processed through a special process to become a paste gap filling material, according to the 1:1 (mass ratio) mixed and cured into a high-performance elastomers, moulded with the shape of the structure, with the most excellent structural applicability and structural components of the surface of the adherence characteristics. This material has some of the advantages of both thermally conductive spacers and thermally conductive silicone grease, making up for the weaknesses of both, and is particularly suitable for space-constrained heat transfer needs.
Thermally Conductive Single Part Fillers has a single, two-component difference, the biggest difference between the two is that the single-component thermally conductive gel is similar to thermally conductive silicone grease, while the two-component thermally conductive gel is similar to thermally conductive silicone film, in general, the single-component thermally conductive gel will not be cured, and has been kept in a wet state, with a high rate of oil release. (Note: At present, there are also special-purpose, single-component can also be cured). Two-component thermally conductive gel will be cured, cured into an elastomer, there is a certain degree of adhesion, the oil rate is low. Both according to their own characteristics of different and to choose their appropriate applications.
|
Thermally Conductive Single Part Fillers Date Sheet |
||
|
PROPERTY |
TYPICAL VALUE |
METHOD |
|
Color |
Blue/customize |
Visual |
|
Conductivity(W/m*K) |
6.4 |
Hot Disk |
|
Density(g/cc) |
3.4 |
Helium Pycnometer |
|
Capacity |
180cc |
/ |
|
Temperature Range |
-40-150℃ |
Trumonyteches method |
1, easy to form, thickness can be controlled; Thermally Conductive Single Part Fillers products do not need refrigeration, room temperature storage, easy to take.
2,System is colourless and transparent (except for special purpose), it can be used in any colour with colouring material.
3,Continuous operation advantages. Thermally Conductive Single Part Fillers is easy to operate, can be manually sized or mechanically sized. Commonly used continuous use of mechanical dispensing, can achieve fixed-point quantitative control, to meet any working environment and working conditions of the place, saving labour and also improve production efficiency.
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 15-30 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the Thermally Conductive Single Part Fillers l and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of the Thermally Conductive Single Part Fillers can be customized if you can meet our MOQ.
E) How to guarantee the quality of Thermally Conductive Single Part Fillers?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
