Product Details:
|
| Alloy: | 1235,8011. | Width: | 100-1000mm |
|---|---|---|---|
| Temper: | HO,H22,H24 | ||
| High Light: | aluminium sheet roll,aluminum strip |
||

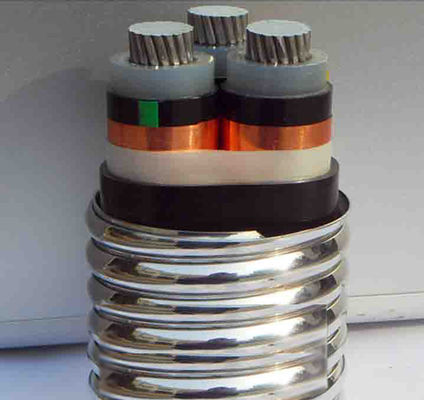

One of our core products is Aluminum Cable Wrap for corrugation for EHV(Extra-High Voltage) Cables .
We have been engaged in producing special aluminum tapes---aluminum cable shield warp for corrugation for EHV Cables, since the production of EHV Cables was been introduced in China more than 10 years ago.
For years, we have witnessed EHV Cable industry rapidly growing, in the meantime, we have established a broad and loyal client group by constantly providing excellent products and services. Nowadays, we already obtained a prominent position in this field.
1. Specification of aluminium strip:
1) Alloy: 1050,1060 and etc.,
2) Temper: HO and etc.,
3) Thickness: 0.8-3.0mm
4)Width: 100 - 1300mm (max)
5) I. D.: 500mm
6) Normal O. D.: 900-2000mmm(max)
7) Electric conductivity:35.33569
8) Other sizes and specifications are available according to customer's request
2. Commercial terms
| Minimum Order Quantity: | 5 metric tons |
| Price: | negotiation |
| Payment Terms: | T/T or LC |
| Supply Ability: | 50,000 mt per year |
| Delivery Time: | 30 working days after received your down payment |
| Packaging Details: | Standard export packaging |
3. Description of our production
Our chemical composition:
|
Alloy |
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | － | 0.03 | 1 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | － | － | 2 |
Our mechanical property:
| Alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
| 1050 | O | 60-100 | ≥15 | ≥23 |
| 1060 | O | 60-110 | ≥15 | ≥23 |
4. Our advantage
1. Since 1988, we have rich experience in this industry in China;
2. We start our productions from aluminum ingot,so we can control the quality as well;
3. We have our own development department for new material research;
4. Good reputation in EHV cable industry;
5. Good experience and cooperation with big client in the world;
6. With Certificate ISO9001-2008;
7. High performance cost ratio;
8. Fast delivery time;
9. Good communication skills, and good service and understandings for customers;.
