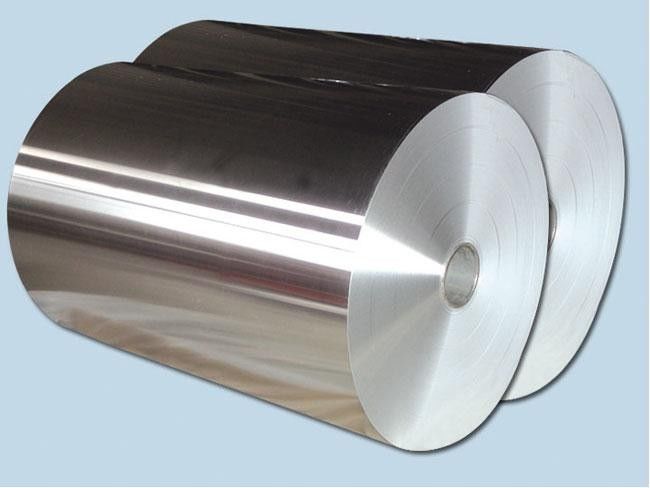

Hydrophilic Rolled Aluminum Sheet For Home Air Conditioner Weather Resistance

MOQ:	5 metric tons
Price:	negotiation
Standard Packaging:	Standard export packaging
Delivery Period:	30 working days after received your down payment
Payment Method:	L/C, T/T
Supply Capacity:	50,000 mt per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001-2008

Model Number

TR-HEX001,TR-HEX002,TR-HEX003

Alloy:

8011，3003，3A21，5052，1060, 1145 And Etc.,

Temper:

HO, H22,H14,H24 And Etc.,

Thickness:

0.06-3.0mm

Width:

12 - 1250mm (max)

Highlight:

aluminium coil

aluminum sheet roll

Product Description

1. Aluminum foil and aluminum sheet for air-condition, refrigerator and etc.,

2. Common information

Brand Name:	Trumony
Model Number:	TR-HEX001,TR-HEX002,TR-HEX003
Certification:	ISO9001-2008
Place of Origin:	China

Specification of aluminium strip:
1) Alloy: 8011,3003,3A21,5052,1060, 1145 and etc.,
2) Temper: HO, H22,H14,H24 and etc.,
3) Thickness: 0.06-3.0mm

4) Width: 12 - 1250mm (max)
5) I. D.: 150mm, 200mm, 300mm, 400mm, 500mm
6) Normal O. D.: 900-1450mmm
7) coating material: hydrophilic coating;epoxy coating;
8) coating color:blue,gold,green and etc,.
9) Other sizes and specifications are available according to customer's request

4. Commercial terms

Minimum Order Quantity:	5 metric tons
Price:	negotiation
Payment Terms:	T/T or LC
Supply Ability:	50,000 mt per year
Delivery Time:	30 working days after received your down payment
Packaging Details:	Standard export packaging

Description of our production

Our chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Cr	Ti	code
8011	0.5-0.9	0.6-1.0	0.1	0.2	0.05	0.1	0.05	0.08	1
3003	0.6	0.7	0.05-0.2	1.0-1.5	－	0.1	－	－	2
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.1	0.15-0.35	－	3
1060	0.25	0.35	0.05	0.03	0.03	0.05	－	－	4
1145	Si+Fe:0.55		0.05	0.05	0.05	－	－	0.03	5
3A21	0.6	0.7	0.2	1.0-1.6	0.05	0.1	－	0.15	6

Our mechanical property:

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
8011	O	60-100	≥45	≥20
8011	H22	70-110	≥55	≥18
3003	H24	140-185	≥125	≥3.0
5052	H32	185-225	≥160	≥1.0
1060	O	60-95	≥35	≥15
1145	H24	95-135	≥55	≥4
3A21	H14	140-185	≥125	≥3

Produce capability

	Width(mm)	Thickness(mm)	Length(mm)	Inside Diameters(mm)
Sheet	200-1300	0.5-5.0	200-2500	-
Strip	12-1300	0.2-3.0	-	150,200,300,400,500
Foil	12-1300	0.05-0.2	-	150,200,300,400,500

6. Our advantage

1. Since 1988, we have rich experience in this industry in China;

2. Good reputation in Aluminum and Copper Areas;

3. We start our productions from aluminum ingot,so we can control the quality as well;

4. We have our own development department for new material research;

5. Good experience and cooperation with big client in the world;

6. With Certificate ISO9001-2008;

7. High performance cost ratio;

8. Fast delivery time;

9. Good communication skills, and good service and understandings for customers;.
