Product Details:
|
| Alloy: | 8079 , 8011 And Etc. | Temper: | HO , H18 And Etc. |
|---|---|---|---|
| Thickness: | 0.018 - 0.030mm | Width: | 150 - 1850mm |
| I. D.: | 76mm , 152mm | Normal O. D.: | 400 - 600mmm |
| Pin Hole: | According To GB/T3198-2010 | Other Requirements: | Other Sizes And Specifications Are Available According To Customer's Request |
| High Light: | aluminum foil roll,aluminium foil packaging |
||
30mic x 1160mm 8079 O Aluminum Pharmaceutical Packaging Foil for Medicine
1. Our chemical composition:
|
Alloy |
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.1 | 0.05 | 0.08 | 1 |
| 1235 | Si+Fe:0.65 | 0.05 | 0.05 | 0.05 | － | － | 0.06 | 2 | |
| 8079 | 0.05-0.3 | 0.7-1.3 | 0.05 | － | － | 0.1 | － | 3 | |
2. Our mechanical property:
| Foil Classification | Thickness(mm) | Alloy |
Thickness Tolerrance | Width Tolerance |
| Thin Gauge 0.018-0.030 |
0.018 |
1235 8011 8079 |
±5% | (200-1880)±1 |
| 0.019 | ||||
| 0.020 | ||||
| 0.025 | ||||
| 0.027 | ||||
| 0.030 | ||||
Mechanical Performance |
Strengthen(Mpa) | 50-160 (according to customer's requirements and technical agreement) |
||
| Elongation(%) | 0.5%-8% (according to customer's requirements and technical agreement) |
|||
| Typical core I.D. | Φ76.2 Φ152 | |||
| Typical Coil O.D. | Φ300 Φ500 Φ1000 (selectable) | |||
| Trace Elements | pb≤0.01 cd≤0.01 As≤0.01 | |||
| Wettability | ≥Class B | |||
| Pin no. (P/m²) | according to custiomer's requirements and technical agreement | |||
| Light (L) | according to custiomer's requirements and technical agreement | |||
| Coil Connector | according to custiomer's requirements and technical agreement | |||
| Surface Quality | 1 even serface flatness 2 clean surface without corrosion,spots,wrinkles,scratches,light and dark lines,marks slots etc. 3 no light spots,marke,wheel mark and black line. 4 no yellow spots from the lubricatio oil burning and breaks on the surface of the final production. | |||
| Quality Outside | No defects such as burring, cracks, telescoping, loosen coils, core out, arrow etc.. Welding firmly, foil section neat and clean. | |||
3. Our advantages
(1) We have rich experience in this industry in China from 2004;
(2) Good reputation in packaging foil areas;
(3) We start our productions from aluminum ingot , so we can control the whole processing as well;
(4) We have our own R&D for new material research;
(5) With Certificate ISO9001-2008;
(6) Excellent experience and cooperation with big client in the world;
(7) performance cost ratio;
(8) Fast deliveryHigh;
(9) Customized orders are available;
(10) Good communication skills, good service and understandings for customers.

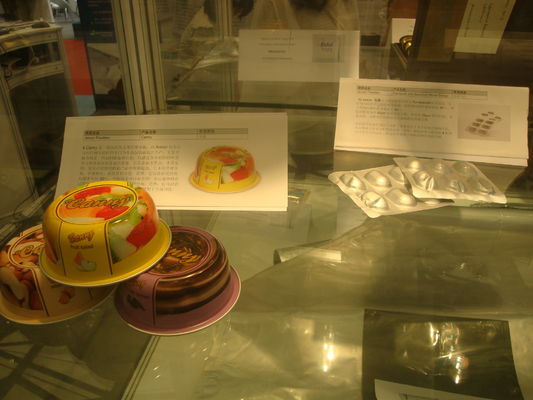

4. Application
Our Flexible Packaging Foil can be used to laminate with other materials including PVC or PET to make long life packs or aseptic packaging for drinks and dairy products which enable storage without refrigeration; Aluminum foil is laminated to used for packing many other oxygen or moisture sensitive foods; in the form of pouches; sachets, etc;
5. F&Q
1. How can I get some samples?
It's always our pleasure to offer you samples, but new clients are expected to pay for express costs. The express costs will be returned if an order is placed within one year period.
2. Are you a manufacturer?
Yes, we are. We have our own factory. As a manufacturer our customers are welcome to visit our factory.
3. Do you have any certificates?
Yes, we do. Our products have ISO9001-2008 and have paseed FDA inspection.
4. What information shall I let you know if I want to get a quotation?
1)The temper and alloy;
2)The specification of products(width X thickness X);
3)It will be better if you can show us the technical data sheet or pictures. Samples will be best for clarifying. If not, we will recommend relevant products with details for reference. We usually manufacture goods based on customer's samples or based on customer's picturers, sizes etc.
