Laminate Aluminium Packaging Foil Double Zero For Cigarette ISO9001 Approval

MOQ:	5 metric tons
Price:	negotiation
Standard Packaging:	Standard export packaging
Delivery Period:	40 working days after received your down payment
Payment Method:	T/T or LC
Supply Capacity:	40,000 mt per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO9001-2008 , SGS

Model Number

TR-F161

Alloy:

1235 , 8011 And Etc.

Temper:

HO , And Etc.

Thickness:

0.006 - 0.007mm

Width:

300 - 1650mm

I. D.:

76mm , 152mm

O. D.:

According To Customer's Requirements

Pin Hole:

According To GB/T3198-2010

Other Requirements:

Other Sizes And Specifications Are Available According To Customer's Request

Highlight:

aluminum foil roll

heavy duty aluminum foil

Product Description

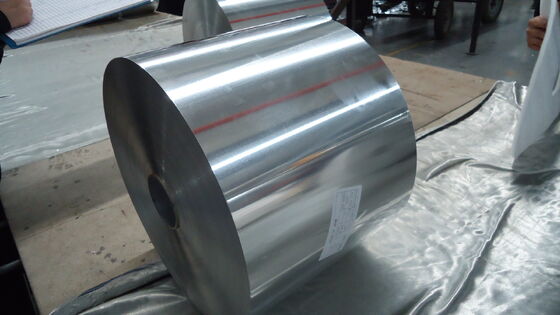

6.5mic x 1205mm 8011 O Aluminum Double Zero Packaging Foil for Cigarette

1. Our chemical composition:

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Cr	Ti	code
8011	0.5-0.9	0.6-1.0	0.1	0.2	0.05	0.1	0.05	0.08	1
1235	Si+Fe:0.65		0.05	0.05	0.05	－	－	0.06	2
8079	0.05-0.3	0.7-1.3	0.05	－	－	0.1		－	3

2. Our mechanical property:

Foil Classification	Thickness(mm)	Alloy	Thickness Tolerrance	Width Tolerance

Thin Gauge 0.018-0.030	0.005	1235 8011 8079	±5%	(200-1880)±1
	0.006
	0.0065
	0.007
	0.008
	0.009
Mechanical Performance	Strengthen(Mpa)	50-160 (according to customer's requirements and technical agreement)

	Elongation(%)	0.5%-8% (according to customer's requirements and technical agreement)

Typical core I.D.		Φ76.2 Φ152

Typical Coil O.D.		Φ300 Φ500 Φ1000 (selectable)

Trace Elements		pb≤0.01 cd≤0.01 As≤0.01

Wettability		≥Class B

Pin no. (P/m²)		according to custiomer's requirements and technical agreement

Light (L)		according to custiomer's requirements and technical agreement

Coil Connector		according to custiomer's requirements and technical agreement

Surface Quality		1 even serface flatness 2 clean surface without corrosion,spots,wrinkles,scratches,light and dark lines,marks slots etc. 3 no light spots,marke,wheel mark and black line. 4 no yellow spots from the lubricatio oil burning and breaks on the surface of the final production.


Quality Outside		No defects such as burring, cracks, telescoping, loosen coils, core out, arrow etc.. Welding firmly, foil section neat and clean.

3. Our advantages

(1) We have been engaging in this industry for 12 years and gained rich experience;

(2) Great acknowledgements from clients in packaging foil areas;

(3) We have our own Research Department for new material development;

(4) We also manufacture raw material , aluminum ingot , so we can control the whole processing as well;

(5) Customized orders are available;

(6) With Certificate ISO9001-2008;

(7) Ample experience and great cooperation with big clients in the world;

(8) High performance cost ratio;

(9) Fast delivery;

(10) Good communication skills, good service and understandings for customers.

4. Application

Our Flexible Packaging Foil can be used to laminate with other materials including PET or PVC to make long life packs or aseptic packaging for drinks and dairy products which enable storage without refrigeration; Aluminum foil is laminated to used for packing many other oxygen or moisture sensitive foods; in the form of sachets; pouches, etc;

5. F&Q

1. How can I get some samples?

It's always our pleasure to offer you samples, but new clients are expected to pay for express costs. The express costs will be returned if an order is placed within one year period.

2. Are you a manufacturer?

Yes, we are. We have our own factory. As a manufacturer our customers are welcome to visit our factory.

3. Do you have any certificates?

Yes, we do. Our products have ISO9001-2008 and have paseed FDA inspection.

4. What information shall I let you know if I want to get a quotation?

1) The alloy and temper;

2) The specification of products(width X thickness X);

3) It will be better if you can show us the technical data sheet or pictures. Samples will be best for clarifying. If not, we will recommend relevant products with details for reference. We usually manufacture goods based on customer's samples or based on customer's picturers, sizes etc.
