Product Details:
|
| Alloy: | 1235 , 8079 , 8011 And Etc. | Temper: | HO And Etc. |
|---|---|---|---|
| Thickness: | 0.006 - 0.020mm | Width: | 200 - 1850mm |
| I. D.: | 76mm , 152mm | Normal O. D.: | 400 , 500 , 600mmm |
| Pin Hole: | According To GB/T3198-2010 | Other Requirements: | Other Sizes And Specifications Are Available According To Customer's Request |
| High Light: | aluminum foil roll,heavy duty aluminum foil |
||

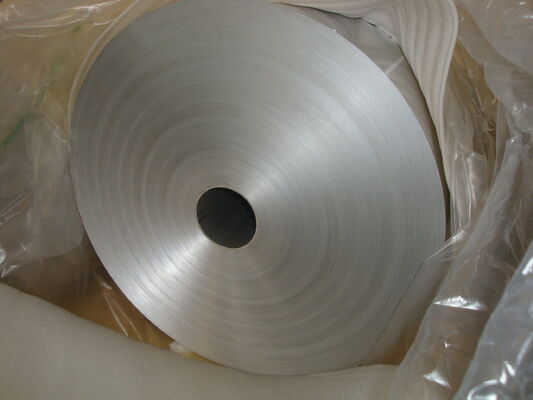

0.007mm x 1355mm 1235 O Aluminum Flexible Packaging Foil for Specialty
1. Our chemical composition:
|
Alloy |
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.1 | 0.05 | 0.08 | 1 |
| 1235 | Si+Fe:0.65 | 0.05 | 0.05 | 0.05 | － | － | 0.06 | 2 | |
| 8079 | 0.05-0.3 | 0.7-1.3 | 0.05 | － | － | 0.1 | － | 3 | |
2. Our mechanical property:
| Foil Classification | Thickness(mm) | Alloy |
Thickness Tolerrance | Width Tolerance |
| Thin Gauge 0.005-0.009 |
0.005 |
1235 8011 8079 |
±5% | (200-1880)±1 |
| 0.006 | ||||
| 0.0065 | ||||
| 0.007 | ||||
| 0.008 | ||||
| 0.009 | ||||
Mechanical Performance |
Strengthen(Mpa) | 50-160 (according to customer's requirements and technical agreement) |
||
| Elongation(%) | 0.5%-8% (according to customer's requirements and technical agreement) |
|||
| Typical core I.D. | Φ76.2 Φ152 | |||
| Typical Coil O.D. | Φ300 Φ500 Φ1000 (selectable) | |||
| Trace Elements | pb≤0.01 cd≤0.01 As≤0.01 | |||
| Wettability | ≥Class B | |||
| Pin no. (P/m²) | according to custiomer's requirements and technical agreement | |||
| Light (L) | according to custiomer's requirements and technical agreement | |||
| Coil Connector | according to custiomer's requirements and technical agreement | |||
| Surface Quality | 1 even serface flatness 2 clean surface without corrosion,spots,wrinkles,scratches,light and dark lines,marks slots etc. 3 no light spots,marke,wheel mark and black line. 4 no yellow spots from the lubricatio oil burning and breaks on the surface of the final production. | |||
| Quality Outside | No defects such as burring, cracks, telescoping, loosen coils, core out, arrow etc.. Welding firmly, foil section neat and clean. | |||
3. Features
(1) Good stretching resistance in length and breadth;
(2) Moisture proof; protect from light ; gas barrier, non-breakage; non leakage;
(3) Heat Insulation Facing with high tensile strength and bursting strength;
(4) Easy for printing;
(5) Environmentally-friendly heat insulation material;
(6) Our plain foils can be manufactured according to customer's requirements;
(7) Perfect oxygen and steam barrier;
(8) Suitable for refreshment ; biscuit ; candy ; milk powder ; instant drink and pet food bag , etc.
4. Application
Our flexible Packaging Foil is used to lamination with other material including PVC or PET to make long life packs or aseptic packaging for drinks and dairy products which enables storage without refrigeration; Aluminum foil laminates are used to package many other oxygen or moisture sensitive foods; in the form of pouches; sachets, etc;
5. F&Q
1. How can I get some samples?
We are honored to offer you samples, but new clients are expected to pay for courier costs. The courier costs will be returned if an order will be placed within one year period.
2. Are you a manufacturer?
Yes, we are. We have our own factory. As a manufacturer our customers are welcome to visit our factory.
3. Do you have any certificates?
Our products have ISO9001-2008 and have paseed FDA inspection.
4. What information shall I let you know if I want to get a quotation?
1)The specification of products(length X width X thickness);
2)The temper an alloy;
3)It will be better if you can show us the technical data sheet or pictures. Samples will be best for clarifying. If not, we will recommend relevant products with details for reference. We usually produce goods based on customer's samples or based on customer's picturers, sizes etc.
