Product Details:
|
| Alloy: | 1050 And Etc. | Temper: | HO And Etc |
|---|---|---|---|
| Thickness: | 0.3mm | Width: | 70mm |
| I. D.: | 300mm | O.D.: | 900mm |
| Electric Conductivity: | 35.33569 | Other Requirements: | Other Sizes And Specifications Are Available According To Customer's Request |
| High Light: | aluminium foil safety,aluminum foil sheets,Coaxial Cable Shield Aluminum Strip |
||

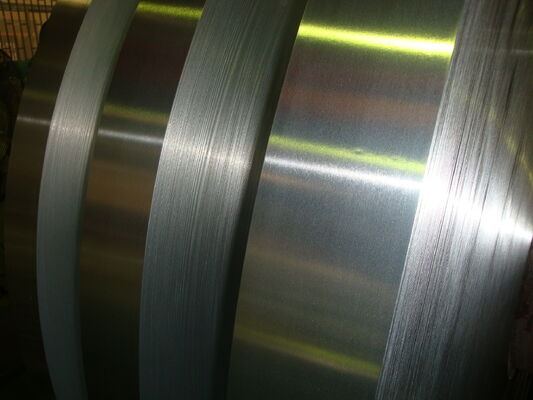

1050 O 0.3mm x 70mm Aluminum strip for RF(ratio frequency) cable armor
1. Our chemical composition:
|
Alloy |
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | － | 0.03 | 1 |
| 1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | － | － | 2 |
2. Our mechanical property:
| Alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
| 1050 | O | 60-100 | ≥15 | ≥23 |
| 1060 | O | 60-110 | ≥15 | ≥23 |
:
3. Specification of aluminium strip:
1) Alloy: 1050,1060 and etc.,
2) Temper: HO and etc.,
3) Thickness: 0.3-1.0mm
4) Width: 70 - 150mm
5) I. D.: 300mm,400mm,500mm
6) Normal O. D.: 900-2000mm(max)
7) Electric conductivity:35.33569
8) Other sizes and specifications are available according to customer's request
4. Features
1. Insulation shield for cable; It can be used for protecting the high frequency transmission of telecommunication cable; power cable and electric wire from the interference of electromagnetic and radio wave;
2. Aluminum foil are widely used for coaxial cable shield and electronic product like EHV cables and RF cables; shielding layer of many other kinds cables;telephone lines and ventilation ducts, etc;
3. Electromagnetic interference shielding;isolate electromagnetic waves to prevent damage to the human
4. Good insulativity and shielding effectiveness to reduce attenuation;avoid the voltage or current influence function;
5. Good thermal insulation; waterproof; cold resistance;Easy to peel; stick force resistance;
5. Application
Radio-shielding application of cables, wrapping and shielding application of cable. Cable foil is used as a skin for heat-insulating and electromagnetic shielding to provide high performance for Cable industry.
6. Our advantages
1. Since 1988, we have rich experience in this industry in China;
2. Good reputation in EHV cable industry;
3. We start our productions from aluminum ingot , so we can control the quality as well;
4. We have our own development department for new material research;
5. Good experience and cooperation with big client in the world;
6. With Certificate ISO9001-2008;
7. High performance cost ratio;
8. Fast delivery time;
9. Good communication skills, and good service and understandings for customers.
