Product Details:
|
| Alloy: | 3003,3102,1100,1050 | Temper: | O,F,H111,H112 |
|---|---|---|---|
| Shape: | Flat Oval | Application: | Automobile Intercooler |
| Surface: | Without Zn Spraying | ||
| Highlight: | aluminium alloy tube,round aluminum tubing |
||

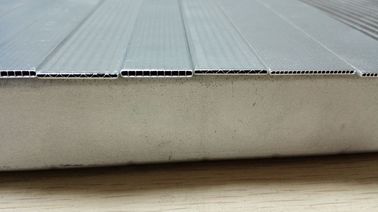

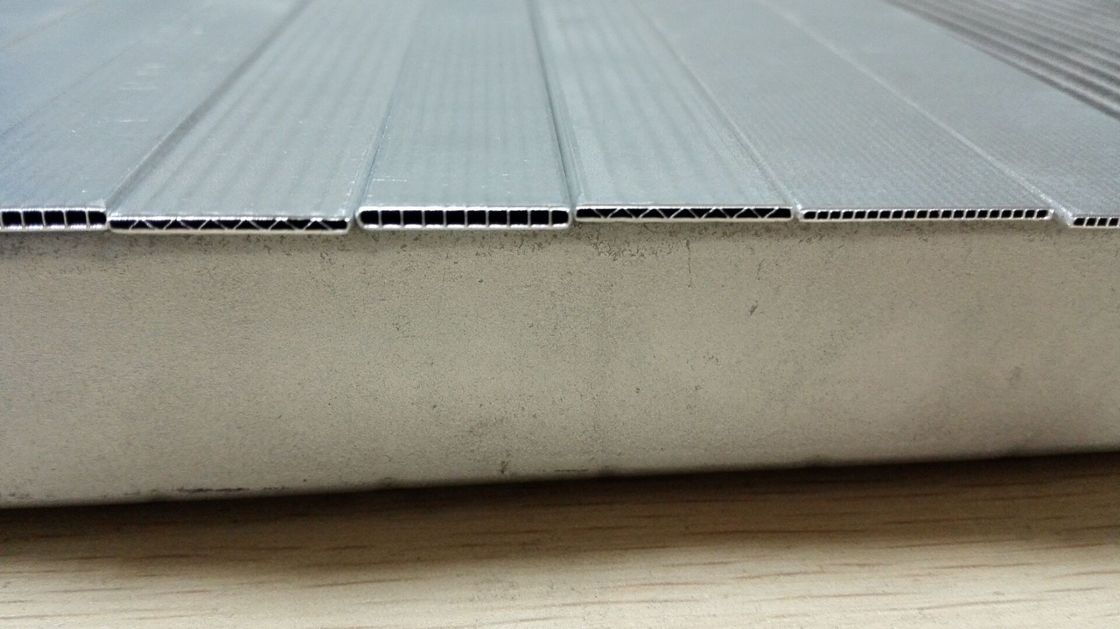

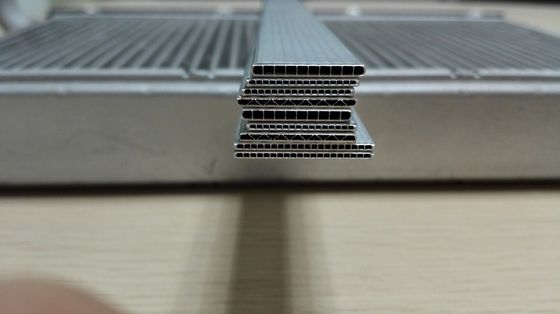

3003 / 3102 Micro-Multiport Aluminum Tube For Radiator Welding
Product Introduction:
Micro Multiport Extruded Aluminium Tube,is a kind of thin porous flat tubular material,which is treated by surface spraying zinc,using refining aluminum bar by hot extrusion.
Aluminum extruded tube for air Condition tube is the main component part of air-conditioning and the parallel Flow evaporators and condensers of other refrigeration equipments.
It is mainly used in all kinds of air conditioning refrigerants system.As a bearer of new environment-friendly refrigerant piping components,it is a key material applied in the new generation of parallel flow microchannel air conditioning heat exchanger and the heat exchange system.
Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
The corrosion resistance performance
Salt spray test ≥750hours
The pressure resistance performance
| Automobile Condensers | Household Condensers | Evaporators |
| ≥9MPa | ≥13.5 MPa | ≥3.5 MPa |
Multiport Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following characteristics:
1. Excellent conduction of heat
2. Excellent corrosion resistance
3. High cycle reuse value
4. High surface quality
5. Low weight
6. High compressive reinforcement
Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater cores
Other sizes not mentioned above can also be according to the technical requirements of user drawing.
Features of our aluminum flat tube:
Presently the aluminum Micro-multiport tube parallel flow heat exchanger is the unique approach to Substantially save energy and cut the cost in air conditioning equipments for Private and commercial use and can make your products environment-friendly.
Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.
