8011 H24 0.14mm*200mm Blue Colored Hydrophilic Finstock Coated Aluminum / Aluminium Foil
TRUMONY color coated aluminium foil combines all advantages of modern coil-coating technology in our full-automatic production line. Our company can produce aluminium coil used for aluminium/plastic composite panel, and the base material for color cocated aluminium coil. The aluminium substrate gets degreased, chemically pre-treated and coated in a single production step which resulting in a high-quality uniform coating reproducible at any time and a material which has been developed for easy processing for a variety of application.
By changing the alloy, we have achieved on the basis of ensuring the fin formability and strength, the thickness of the fin is reduced. And then it can reduce the volume of equipment and improve heat transfer efficiency.
Through online inspection, we can exclude the problem from the root which finally ensured customers’ production yield of tube.
Meanwhile,we also developed high strength and long life plate material.The environmental resistance of the equipment which is made out of the such plate material will be greatly enhanced.
Currently,we also put three or more composite materials as our R & D direction.The purpose of the research is to increase the anti-corrosive and other features of the material.

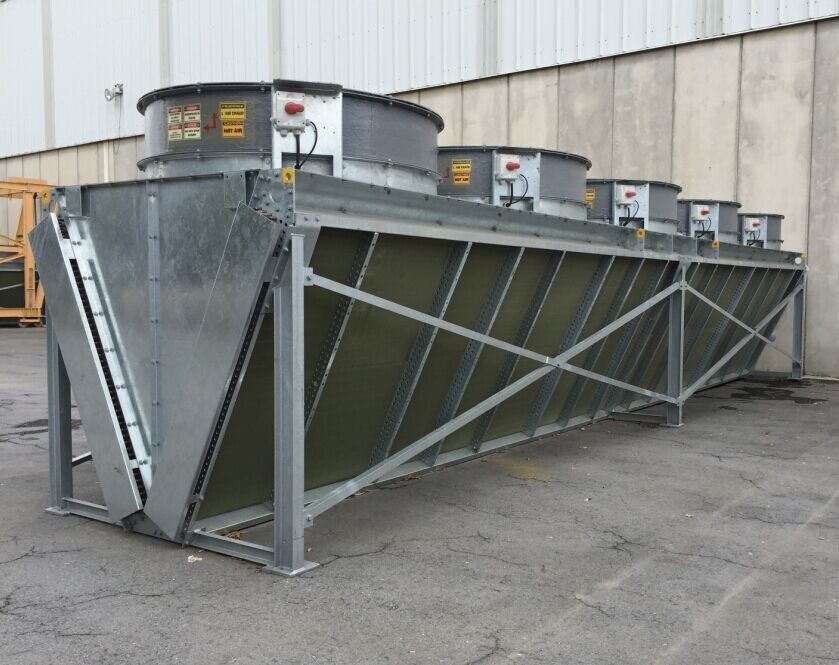

Industrial heat exchangers mainly used aluminum material as fins.It mainly requires the aluminum material to have a high deformability and a certain strength.It is suitable for nuclear power station, petrochemical,power plants and other large water-cool or air-cool equipment.By professional slitting and special annealing process,we perfectly supplied the world's large industrial heat transfer projects.
|Minimum Order Quantity:||5 metric tons|
|Payment Terms:||T/T or LC|
|Supply Ability:||50,000 mt per year|
|Delivery Time:||30 working days after received your down payment|
|Packaging Details:||Standard export packaging
Hydrophilic foil coating layer performance:
1, Film thickness / 1.0-2.0µm (Single side average thickness)
2, Hydrophilicity /Primary contact angle?10° /Continuous contact angle?20°
3, Adherence strength Erichsen test(pressed depth 5mm), no peeling off
4, Corrosion resistance /Salt&Spray (72 hours) R.N?9.5
5, Alkali resistance/ Dipped in 20% NaOH under 20°C for 3 minutes. absolutely no blister.
6, Impregnant resistance / Sample weight loss?1%
7, Heat resistance/ Under 200°C keep 5 minutes, performance and color unchanged; Under 300°C keep 5 minutes, coating film become a bit yellow
8, Oil proof/ Dipped in volatile oil for 24 hours, no blister on the coating layer
9, Coating film odor/ No stranger odor
10, Abrasion to mold / Same as ordinary aluminium foil
- High temperature resistant
- Weathering resistant
- Scrubbing resistant
- Sound insulation
- Acid or alkali proof
- Light weight material is easy to construct and install
- Bright colors
- Easy molding process,not rusting etc.
Application And Projects We Finished:
1. Widely used in insulation board
2. Aluminum curtain wall
3. Aluminum-magnesium-manganese roofing system
4. Aluminum ceiling
5. Acp and many other areas
Terms and conditions:
5, Electronic(circuit board pads,capacitors, etc.)
6, Home( cooking utensils,household foil,lunch boxes, etc.)
7, Print( PS sheet, CTP sheet, etc.)
8, Other(tape, pipe packaging, anti-slip pedals, etc.)
9, Construction, decoration, electronic products, wall Cladding, Truck body, Signboard, Insulation, Ceiling, aerospace,aviation, household appliance, lighting, and some other areas,etc.
8. Fast delivery time;
Pls feel free to contact us, either in English or Russian is OK.
