Product Details:
|
| Alloy: | 1100 | Temper: | H14,H16,H18,H22 |
|---|---|---|---|
| Feature: | Cold Rolling , Hot Rolling | Shape: | Rolled |
| High Light: | aluminium foil rolls,industrial aluminium foil |
||

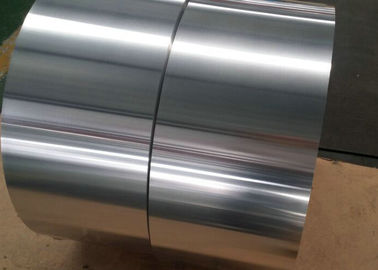

Alloy 1100 Aluminium Heat Exchanger Foil Fin With Flexible Thickness For Air Conditioning
Quick details
Prodcut : Finstock
Alloy : 1100 , 1200 , 3102 , 8011
Temper : O , H22 , H24 , H26
Thickness : 0.08 - 0.2 mm
Width : 60 - 1440mm
Inside Diameter : 75 , 150 , 200 , 300 , 400 ,
Outside Diameter : 400 - 1400mm
Application :
Our company can produce bare foil, and hydrophilic foil with clolor such as blue , gold, white, etc, then product quality can reach the top level in both domestic and abraod industry , It mainly applied for household aire conditioner , refrigerator , auto AC , auto water tank , etc .

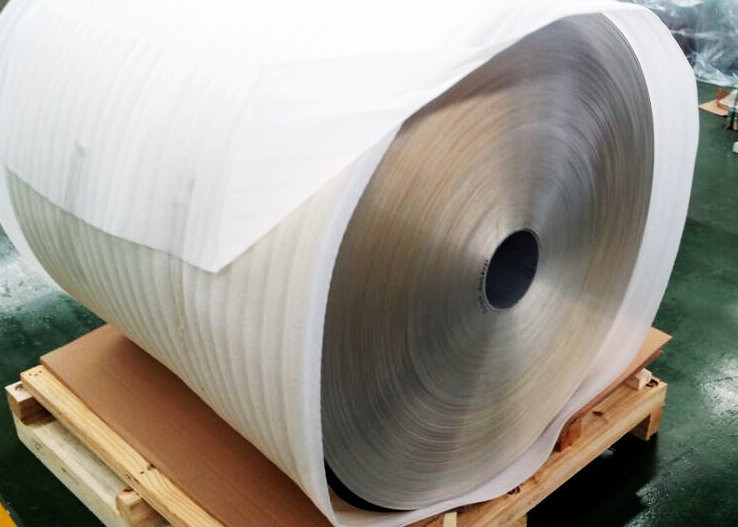

The Perfect Package
Mechanical Performance ( For Reference Only )
|
Temper
|
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Erichsen (mm)
|
O |
80- 110 |
20 |
6.0 |
H22 |
100 - 135 |
16 |
5.5 |
H24 |
115 -145 | 12 | 5.0 |
H26 |
125 - 160 |
8 | 4.0 |
H18 |
160 | 1 | - |
