Product Details:
|
| Temper: | H22 | Alloy: | 8011 |
|---|---|---|---|
| Thickness: | 0.155mm | Color: | Blue, White, Gold, According To The Requests |
| Application: | Air Conditioner | ID: | 75mm |
| OD: | 850mm | ||
| High Light: | heavy duty aluminum foil,aluminium foil packaging |
||

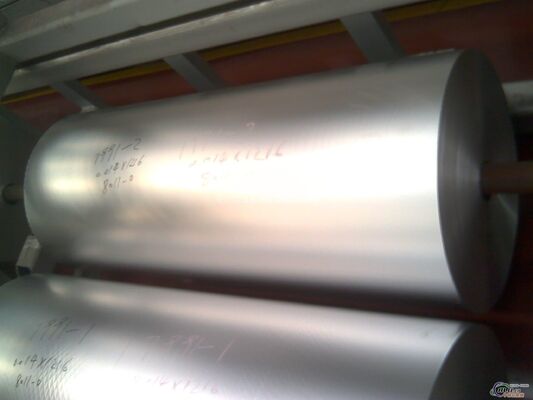

Customized 8011 H22 With Thickness 0.155mm Hydrophilic Aluminium / Aluminum Coated Foil
Our mechanical property:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Others | Al | |
| Single | Total | |||||||||||
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.05 | - | 0.1 | 0.08 |
0.05 |
00.15 | Remaining |
| Alloy Code | Temper |
Tensile Strength Rm(MPa) |
Cup Drawing Value(mm) |
Extend Ratio A50(%) |
| 8011 | H22 | 100-135 | 5.5 min | 16 |
Commercial terms
| Minimum Order Quantity: | 5 metric tons |
| Price: | negotiation |
| Payment Terms: | T/T or LC |
| Supply Ability: | 50,000 mt per year |
| Delivery Time: | 30 working days after received your down payment |
| Packaging Details: | Standard export packaging |
Hydrophilic foil coating layer performance:
1, Film thickness / 1.0-2.0µm (Single side average thickness)
2, Hydrophilicity /Primary contact angle?10° /Continuous contact angle?20°
3, Adherence strength Erichsen test(pressed depth 5mm), no peeling off
4, Corrosion resistance /Salt&Spray (72 hours) R.N?9.5
5, Alkali resistance/ Dipped in 20% NaOH under 20°C for 3 minutes. absolutely no blister.
6, Impregnant resistance / Sample weight loss?1%
7, Heat resistance/ Under 200°C keep 5 minutes, performance and color unchanged; Under 300°C keep 5 minutes, coating film become a bit yellow
8, Oil proof/ Dipped in volatile oil for 24 hours, no blister on the coating layer
9, Coating film odor/ No stranger odor
10, Abrasion to mold / Same as ordinary aluminium foil
Our characteristics:
- High temperature resistant
- Weathering resistant
- Scrubbing resistant
- Sound insulation
- Acid or alkali proof
- Fireproof
- Light weight material is easy to construct and install
- Bright colors
- Easy molding process,not rusting etc.
Application:
1. Widely used in insulation board
2. Aluminum curtain wall
3. Aluminum-magnesium-manganese roofing system
4. Aluminum ceiling
5. Acp and many other areas
6. Lighting,
Mainly for finstock, air conditioner.
FAQ:
1, Q: What is you company type? Trading company or manufacturer?
A: Of course we are a manufacturer, our factory was set up in 2003.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances(chemical compositions and mechanical properties) or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3, Q: Do you offer free samples?
A: Sure,we are gald to send you free samples for your evaluation.But currently we need you to kindly pay the delivery charge on your side if you'd like to have our samples.
4, Q: What's your MOQ?
A: Normally 5 metric tons are requested as the minimum order quantity on our side.
Pls feel free to contact us, either in English or Russian is OK.
