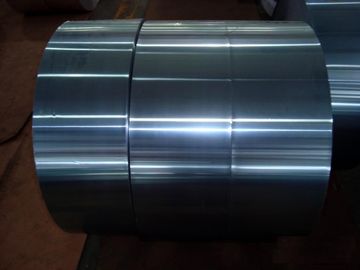

Unclad Aluminium Foil Tapes / Fin Foil For Automotive Radiator 0.1mm Thickness

Unclad Aluminium Foil Tapes / Fin Foil For Automotive Radiator 0.1mm Thickness
Unclad Aluminium Foil Tapes / Fin Foil For Automotive Radiator 0.1mm Thickness Unclad Aluminium Foil Tapes / Fin Foil For Automotive Radiator 0.1mm Thickness

Large Image :  Unclad Aluminium Foil Tapes / Fin Foil For Automotive Radiator 0.1mm Thickness

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: ISO14001 , TS16949 , OHSAS 18001
Model Number: TR-FR040
Payment & Shipping Terms:
Minimum Order Quantity: 5 metric tons
Price: negotiation
Packaging Details: Standard export packaging
Delivery Time: 30 working days after received your down payment
Payment Terms: T/T or LC
Supply Ability: 100,000 mt per year

Unclad Aluminium Foil Tapes / Fin Foil For Automotive Radiator 0.1mm Thickness

Description
Alloy: 3003 + 1.5%Zn + Zr Temper: H16
Thickness: 0.1mm Width: 284mm
I.D.: 150-300mm O.D.: 800mm Max
Packaging: Eye To Sky Other Requirements: Other Requirements Are Available According To Customer's Request
High Light:

aluminum foil roll

,

aluminium foil packaging

0.1 x 284mm 3003 + 1.5%Zn + Zr H16 Aluminum Unclad Fin foil for Automotive Radiator





1. Description of our production



Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger



1) Core Material



Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 0.01 6



2) Cladding Material



Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 0.2 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 0.5-1.5 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 0.2 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 0.5-1.5 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 0.2 5
7072 0.7 0.1 0.1 0.1 0.8-1.3 6
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 0.03 7



3) Main mechanical of aluminum alloy and composite-material for welding heat exchanger



Alloy Code temper

Tensile Strength

Rm(MPa)

Yield Strength Rp0.2(Mpa)

Extend Ratio

A50(%)

TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.tube material H24 185-235 ≥150 ≥8

TR-116,TR-316 Etc.tube

material

H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8



Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..



Additional: We can produce special specification according to customer’s request.



4) Produce capability



  Width(mm) Thickness(mm) Length(mm) Inside Diameters(mm)
Sheet 500-1070 0.5-5.0 500-2500 -
Strip 12-1070 0.2-3.0 - 150,200,300,400,500
Foil 12-1070 0.05-0.2 - 150,200,300,400,500



Composite ratio 4-18%(per side)



Percent Clad(per side) 4-8% > 8-18%
Cladding tolerance ±1.5% ±2.0%





2. Our advantage



1. Since 1988, we have rich experience in this industry in China;



2. Good reputation in Aluminum and Copper Areas;



3. We start our productions from aluminum ingot,so we can control the quality as well;



4. We have our own development department for new material research;



5. Good experience and cooperation with big client in the world;



6. With Certificate TS16949, ISO14001 and OHSAS 18001;



7. High performance cost ratio;



8. Fast delivery time;



9. Good communication skills, and good service and understandings for customers;.





3. Features

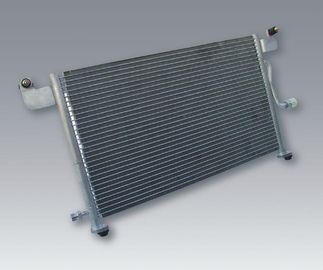

Uncladded/Cladded aluminum material is suitable for a variety of brazing processes, such as Nocolok brazing and vacuum brazing, It’s widely used in engine cooling and air conditioner systems in automotive industry; such as radiator;condenser;evaporator;intercooler; oil cooler and heater; In home electrics industries;such as HVAC heat exchanger; water heater;PTC heating unit; In the industrial field;such as power plant cooling systems;construction machinery and air separation equipment; Our cladded aluminum material highly recommended in the market for its stable mechanical properties;stable cladded percentage and excellent corrosion resistance.





4. FAQ:



1, Q: Are you manufacturer?

A: Yes, we are established in 1988. As a manufacturer our customers are welcome to visit our factory.



2, Q: Do you accept customized orders?

A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.



3. Q: How can I get one quotation faster?

A: Pls offer details about your demands as more as possible, alloy, temper, thickness, width, quantity,application,etc.



4. Q: If I can not offer above information,what should I do?

A: Try your best to offer more information,we will help you design suitable material.



5. Q: What is your company sample policy?

A: As one supplier,we see that sample is necessary for our both sides, our policy is to offer samples as possible as we can, About sample shippment,you need to pay for the freight,usually freight collect by express.
