Product Details:
|
| Alloy: | 3003+1.5%Zn+Zr/3003/3005/3003+1%Zn | Type: | Single Cladding/double Cladding/non Cladding |
|---|---|---|---|
| Application: | Radiator/condenser/evaporator/intercooler/oil Cooler/heater | Shape: | Coil |
| High Light: | aluminum foil roll,aluminium foil strip |
||

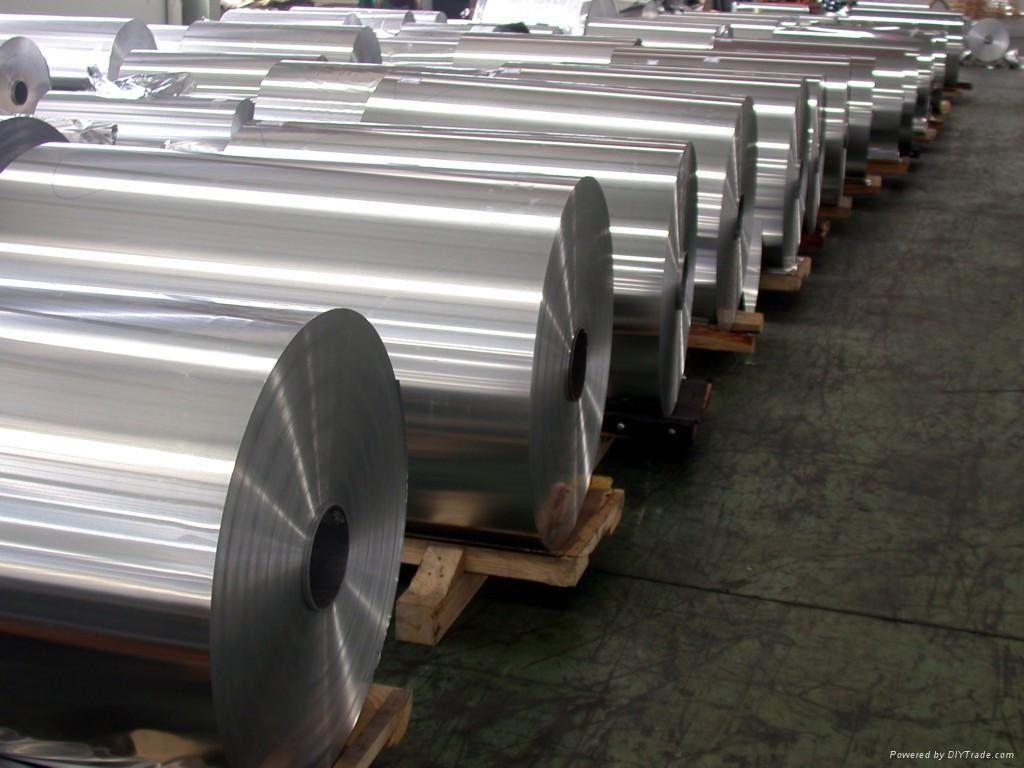

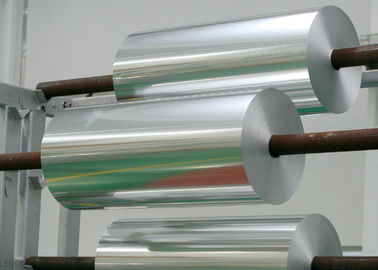

Alloy 3003 Aluminum Heat Transfer Plates In Coil For Radiator/Condenser/Evaporator/Intercooler/Oil Cooler/Heater
Specification:
| Width(mm) | Thickness(mm) | Length(mm) | Inside Diameters(mm) | |
| Sheet | 500-1070 | 0.5-5.0 | 500-2500 | - |
| Strip | 12-1070 | 0.2-3.0 | - | 150,200,300,400,500 |
| Foil | 12-1070 | 0.05-0.2 | - | 150,200,300,400,500 |
| Composite ratio | 4-18%(per side) |
| Percent Clad(per side) | 4-8% | ＞ 8-18% |
| Cladding tolerance | ±1.5% | ±2.0% |
Main mechanical of aluminum alloy and composite-material for welding heat exchanger
| Alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
| TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3.0 | |
| H16 | 185-225 | ≥160 | ≥1.0 | |
| H18 | ≥185 | - | ≥0.5 | |
| TR-166 Etc.tube material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116,TR-316 Etc.tube material | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 |
Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..
Additional: We can produce special specification according to customer’s request.
Our Advantages:
1 . High quality and competitive price,fast delivery.
2 . We are not only concerned for the quality of our products and services. Another of our objectives is our respect and care for the environment.
3 . Fast Handling of Inquiries and Orders.
4 . Inventory for Standard Products.
