Product Details:
|
Thickness: | 0.08mm | Width: | 16mm |
---|---|---|---|
Alloy: | AA3003 | Temper: | H14 |
Inside Diameter: | 200mm | ||
High Light: | industrial aluminium foil,thermal transfer foil |

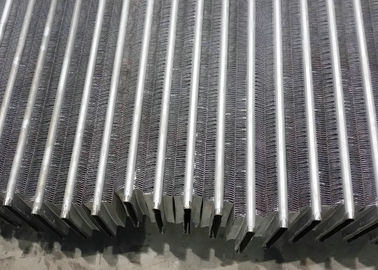

Alloy 3003 0.08mm Thickness Aluminium Heat Exchanger Fin Foil for Condenser,Radiator , Intercooling
1.Company representation
Our company was established in 2006 and mass production began in Jan.2007. With ISO 9001:2000 and ISO/TS16949.2002 certificated , we are one of the global leading and most specialized suppliers of heat exchanger materials for automobile, HVAC and industrial cooling tower, Our designed annual capacity is 80,000MT in the first stage.
2.Application
Can be used in a various of heat exchanger constructions which the basic function is to efficiently transfer heat. Also this fin foil can be used for evaporator and condenser in most residential, automotive ,and commercial air conditioning units and in humidifiers and etc.
3.Discreption of our products
Chemical composition of core material,cladding material about aluminum alloy and composite-material for welding heat exchanger
Material Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | - | 0.1 | 0.05 | 0.03 | 1 |
Main mechanical of aluminum alloy and composite-material for welding heat exchanger
Alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
AA 3003 | O | 95-135* | ≥35* | ≥15* |
Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..
Additional: We can produce special specification according to customer’s request.
Composite ratio | 4-18%(per side) |
4.FAQ
1. Are you a manufacturer of aluminum raw material ?
Yes, we are. We have our own factory.
2. What information shall I let you know if I want offer ?
(1),The Temper , Alloy , Thickness and Width , if you to give us the usage of products, it is better for us to understanding.
(2),It will be better if you can show us the technical data sheet or pictures. Samples will be best for clarifying. If not, we will recommend relevant products with details for reference. We usually produce goods based on customer's samples or based on customer's picturers, sizes etc.
5.Our advantage
1. Since 2004, we have rich experience in this industry in China; | |||||
2. Good reputation in household foil areas; | |||||
3. We start our productions from aluminum ingot,so we can control the quality as well; | |||||
4. We have our own development department for new material research; | |||||
5. Good experience and cooperation with big client in the world; | |||||
6. With Certificate ISO9001-2008; | |||||
7. High performance cost ratio; | |||||
8. Fast delivery time; | |||||
9. Customized orders available; | |||||
10. Good communication skills, and good service and understandings for customers;. |
