Product Details:
|
| Core Alloy: | 3003+Zn | Clad Alloy: | 4343 |
|---|---|---|---|
| Thickness: | 0.15mm | Width: | 62mm |
| I.D.: | 254mm | O.D.: | ≤1350mm |
| Packaging: | Eye To Sky | Temper: | H14 |
| Highlight: | aluminium foil rolls,thermal transfer foil |
||

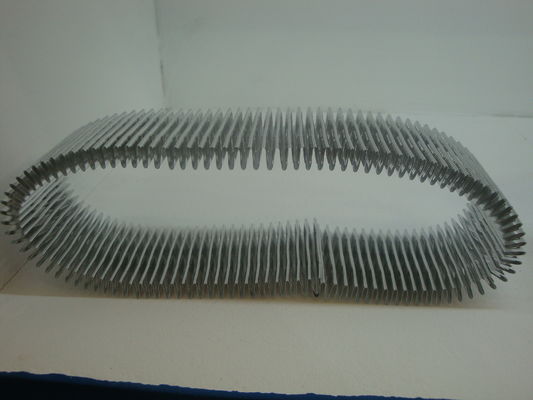

0.15 x 62mm 4343 / 3003+Zn / 4343 H14 Aluminum Foil Coil for Automotive Radiator Fin
1. Description of our production
Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger
1) Core Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 | 1 |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.5-1.50 | 0.05 | 0.05 | 2 |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 1.0-2.0 | 0.05 | 0.05 | 3 |
| 3003+1.5%Zn+Zr | 0.5-1.0 | 0.7 | 0.05-0.20 | 1.0-1.6 | － | 1.0-2.0 | 0.05-0.2 | - | 4 |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.30-0.70 | 1.0-1.5 | － | 0.10 | 0.05 | 0.1 | 5 |
| 3005 | 0.6 | 0.7 | 0.20-0.40 | 1.0-1.5 | 0.20-0.60 | 0.25 | － | 0.01 | 6 |
2) Cladding Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.2 | － | 0.05 | 1 |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.5-1.5 | － | 0.05 | 2 |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.2 | － | 0.2 | 3 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.5-1.5 | － | 0.2 | 4 |
| 4004 | 9.0-10.5 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | － | 0.2 | 5 |
| 7072 | 0.7 | 0.1 | 0.1 | 0.1 | 0.8-1.3 | － | － | 6 | |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.5-1.0 | － | 0.03 | 7 |
3) Main mechanical of aluminum alloy and composite-material for welding heat exchanger
| Alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
| TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3.0 | |
| H16 | 185-225 | ≥160 | ≥1.0 | |
| H18 | ≥185 | - | ≥0.5 | |
| TR-166 Etc.tube material | H24 | 185-235 | ≥150 | ≥8 |
|
TR-116,TR-316 Etc.tube material |
H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 |
Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..
Additional: We can produce special specification according to customer’s request.
4) Produce capability
| Width(mm) | Thickness(mm) | Length(mm) | Inside Diameters(mm) | |
| Sheet | 500-1070 | 0.5-5.0 | 500-2500 | - |
| Strip | 12-1070 | 0.2-3.0 | - | 150,200,300,400,500 |
| Foil | 12-1070 | 0.05-0.2 | - | 150,200,300,400,500 |
| Composite ratio | 4-18%(per side) |
| Percent Clad(per side) | 4-8% | ＞ 8-18% |
| Cladding tolerance | ±1.5% | ±2.0% |
2. Application:
1. Oil Cooler
2. Automobile Radiator
3. Automobile Heater Core
4. Condenser
5. Evaporator
3. FAQ:
1, Q: Are you manufacturer?
A: Yes, we are established in 1988. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible, alloy, temper, thickness, width, quantity,application,etc.
4, Q: What's your MOQ?
A: Normally 5 metric tons are requested as the minimum order quantity on our side.
5, Q: What's your payment term?
A: 30% deposit in advance via T/T,balance before shipment.
