Intercooler Industrial Aluminium Foil Roll Jumbo O.D. 1350mm Non - Poisonous

Name: Intercooler Industrial Aluminium Foil Roll Jumbo O.D. 1350mm Non - Poisonous
Brand: Trumony Aluminum Limited
SKU: TR-FR170
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Trumony

Certification: TS16949-2008 , ISO14001 and OHSAS 18001

Model Number: TR-FR170

Trading Properties

Minimum Order Quantity: 5 metric tons

Price: negotiation

Payment Terms: T/T or LC

Supply Ability: 100,000 mt per year

heavy duty aluminum foil

Specifications

Alloy:	3003	Thickness:	0.14mm
Width:	92mm	I.D.:	254mm

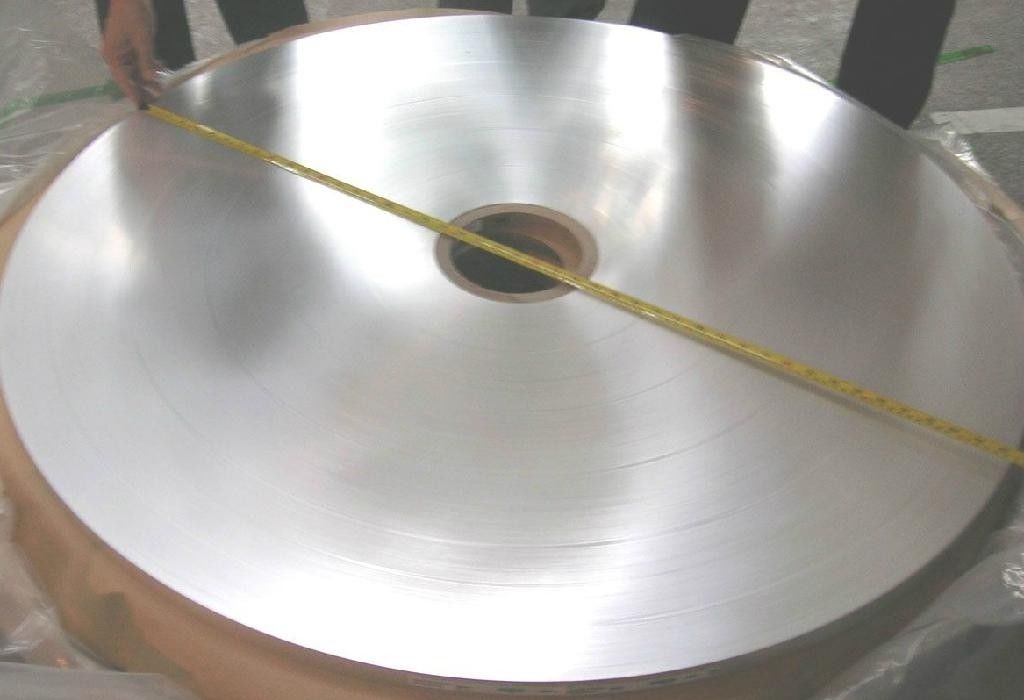

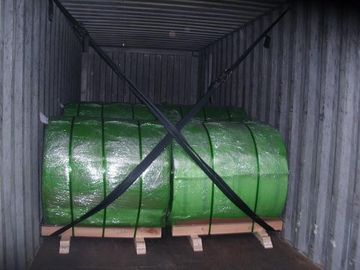

O.D.:	≤1350mm	Packaging:	Eye To Sky
Temper:	H14	Other requirements:	According To Customers' Request
High Light:	aluminum foil roll , heavy duty aluminum foil

Product Description

0.14 x 500mm 3003 H14 Aluminum Uncladded Foil Coil for Industrial Heat Exchanger

1. Description of our production

Chemical composition of core material about aluminum alloy and composite-material for welding heat exchanger

1) Core Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

2) Main mechanical of aluminum alloy and composite-material for welding heat exchanger

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..

Additional: We can produce special specification according to customer’s request.

3) Produce capability

	Width(mm)	Thickness(mm)	Length(mm)	Inside Diameters(mm)
Sheet	500-1070	0.5-5.0	500-2500	-
Strip	12-1070	0.2-3.0	-	150,200,300,400,500
Foil	12-1070	0.05-0.2	-	150,200,300,400,500

Composite ratio

4-18%(per side)

Percent Clad(per side)	4-8%	＞ 8-18%
Cladding tolerance	±1.5%	±2.0%

2. Application:

We dedicated to the production of clad and unclad aluminum materials for braze-type automobile heat exchangers like radiator, intercooler, condenser, evaporator and industrial heat exchangers, like air coolers for power plants, air conditioner etc.and other aluminum alloy products.

3. Our advantage

1. Since 1988, we have rich experience in this industry in China;

2. Good reputation in Aluminum and Copper Areas;

3. We start our productions from aluminum ingot,so we can control the quality as well;

4. We have our own development department for new material research;

5. Good experience and cooperation with big client in the world;

6. With Certificate TS16949, ISO14001 and OHSAS 18001;

7. High performance cost ratio;

8. Fast delivery time;

9. Good communication skills, and good service and understandings for customers;.
