|Product Name:||FSW Welded Cold Plate||Grade:||3003/4.43,3003|
|Temper:||H112||Size:||As Your Design|
|Manufacturing Process:||Stamping/ Welding||Surface:||Coating|
|Application:||Battery Pack Cooling||Sample:||Available|
|Component:||Connectors / TIM/ Plastic Quick Connectors||Pack:||Cartons|
H112 Temper Brazed Cold Plate,
Brazed Liquid Cold Plate,
FSW Welded Cold Plate

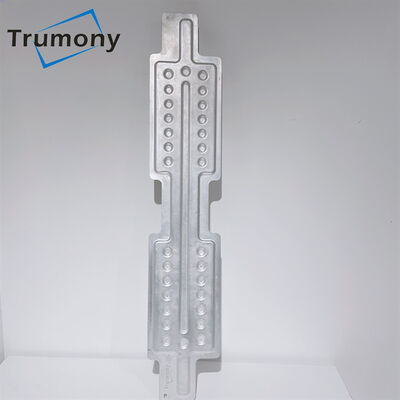

Thermal Management Liquid Cold Plate FSW Welded Cold Plate
A cold plate liquid cooling system consists of a pump, heat exchanger, connective tubing,and cold plates―replacing heat sinks and fans. The aluminum cold plate, usually made of metal, is made up of internal tubing where a liquid coolant absorbs the heat transferred to the plate by transistors and other components mounted on it.The stamped cold plates are widely used for cooling EV battery pack .
|Item||Electric vehicle racing battery module cooling plate|
|Size||As your design|
|Cooling type||Liquid cooling|
|Structure||Stamping cold plate /aluminum down plate / inlet/outlet/ plastic quick connectors|
|Application||prismatic battery or soft package cells|
|Cooling Plate type||cold plate cooling plate for EV, stamped cold plate for ESS,harmonica shaped cooling tube plate , EV battery snake cooling tube ,aluminum roll bonded plate .|
Liquid cooling plate for commercial application :
1- Liquid cooling plate for prismatic cells battery pack
2- Aluminum micro channel tube for cylindrical cells battery pack ,such as 18650,21700,3270,4680
3- Aluminum channel plates for soft package cells
4- Aluminum roll bonded evaporator
1). Since 2006, we have rich experience in this aluminum thermal management industry in China;
2). Good reputation in aluminum material field;
3). Designing ability: We have professional designing team to turn your idea into real product, or provide you suggestions
4). Competitive price advantage;
5). Good experience and cooperative relationship with worldwide clients;
6). Certified with ISO9001-2008;
7). Sample acceptable;
8). High performance cost ratio;
9). Fast delivery time: 10-25 days.
1. What battery module cooling solution you can provide ?
A: We have 4 kinds of battery cooling type for your battery pack. Aluminum snake tube for cylindrical shaped of cells. Aluminum brazed cooled plate for prismatic cells ,aluminum micro channel plates for pouches and aluminum roll bonded panels .
2. What the alloy and temper of your water cooling plate ?
A: The aluminum alloy is 3000,6000 and temper is O-H112.
3. What the process technology to do the cold plate or coolant channles ?
A: Aluminum extrusion process , vacuum brazing process, roll bonded process and we also have CNC center.
4. Do you support customized prototype for battery pack module ?
A: Sure, we can produce the aluminum liquid cooling plate as your design. If just at the development stage, our existing cooled plate heat sinks are available for checking.
