Product Details:
|
| Item: | Aluminum Serpentine Heat Tube | Specifications: | Per Your Request |
|---|---|---|---|
| Fixed Length: | As Your Module Drawing | Design Service: | YES |
| Under Water Test: | YES. Check The Leakage For Welding | Burst Test: | YES |
| Package: | Exported Wooden Packing | Processing Method: | Stamping, Punching, Bending, Welding, Brazing, Extrusion, Cutting |
| Key Words: | Serpentine Heat Tube, Snake Cooling Ribbon, Aluminum Heat Exchangers For EV | Applications: | Electric Vehicle Battery, ESS Battery, IGBT Cooling |
| High Light: | EV Serpentine Tube,Aluminium Serpentine Tube,Battery Thermal Management Serpentine Tube |
||

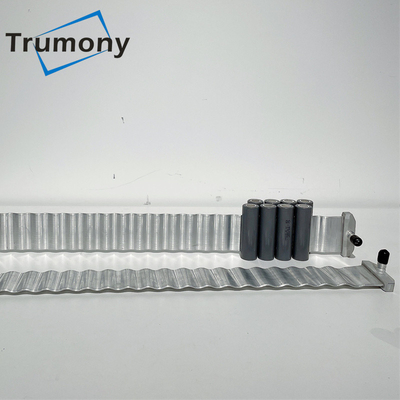

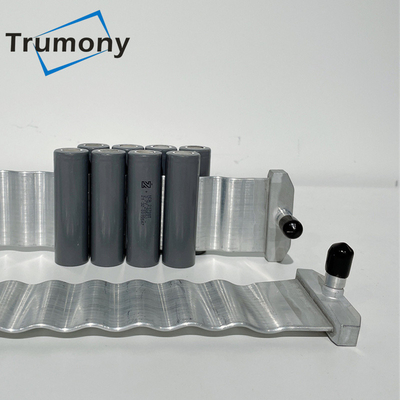

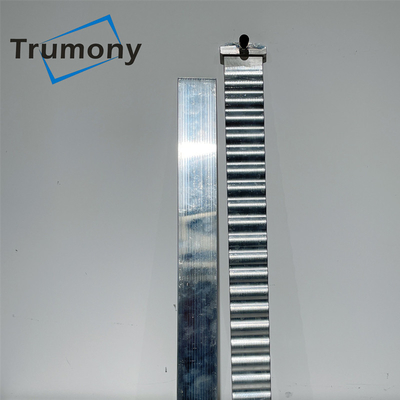

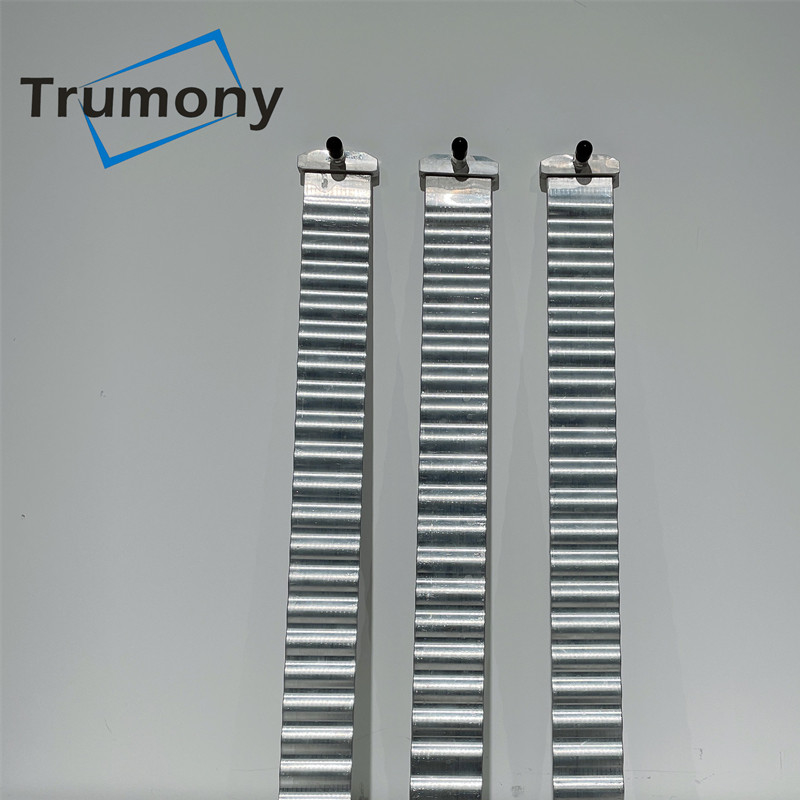

Aluminum Serpentine Heat Tube for Battery Thermal Management
Aluminum serpentine heat tube is widely used in different range of heat exchange, such as energy automobile/vehicle, energy storage system, soaking plate, temperature uniforming plate, solar panel. solar energy collector.
| Extrusion | YES | own mold centre |
| CNC | YES | own CNC centre |
| Stamping | YES | max 1.6*2.3m |
| Brazing | YES | auto brazing line |
Features:
*Design options:
1) Punching cooling plate
It used for prismatic cells and battery pack, bottom & side cooling solution;
2) Serpentine cooling ribbon
Applied for cylindrical cells: 18650, 21700, 3270, 4680 and etc;
3) Micro-channel tube with manifold
For battery pack side or bottom battery cooling;
4) Roll bonding cooling plate;
5) Friction stir welding plate
It has a simpler welding process, higher production efficiency, higher weld strength, and can avoid problems such as pores and liquid leakage in high-temperature fusion welding.
Our Advantages:
1. Tooling development — we do it in house, so we can make initial testing prompt and accurate.
2. Making all kinds of heat exchangers — we can do customized shape, to make the parts fit into different packs.
3. Assistance in parts design — we have experienced engineer team, they can provide professional suggestions regarding feasibility of carrying out new designs.
4. One station service — we can do heat exchangers, as well as its related insulation and silicon pad. So client can get integrated solution.
Test Ability:
|
Chemical Composition Test |
YES |
|
Pysical Test & Optics Test |
YES |
|
Roughness Test & Hardness Test |
YES |
|
Elongation Test |
YES |
|
Salt Spray Test |
YES |
|
Burst Test |
YES |
|
Nitrogen & Helium Test |
YES |
|
Flow Resistance Test |
YES. Inside &outside corrosion test |
|
Voltage Test |
YES |
|
Under Water Test |
YES. Check the leakage for welding |
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What method of processing technology?
A: We have brazing line, stamping line, extrusion line, and roll boned process line. Also CNC centre is available.
Q: If we don't have design, can you assist in design?
A: Yes, we can! We have a strong and experienced design team. Flow path design, thermal simulation, mechanical simulation and design optimation are support. Kindly share with us your detail project, service8@trumony.com, we'd love to do DFM for you.
Q: How fast you can make prototype?
A: About 3~5wks. The precise lead time will depends on your design and producing process
Contact Person: Mr. Tracy
Tel: +8613584862808
Fax: 86-512-62538616
